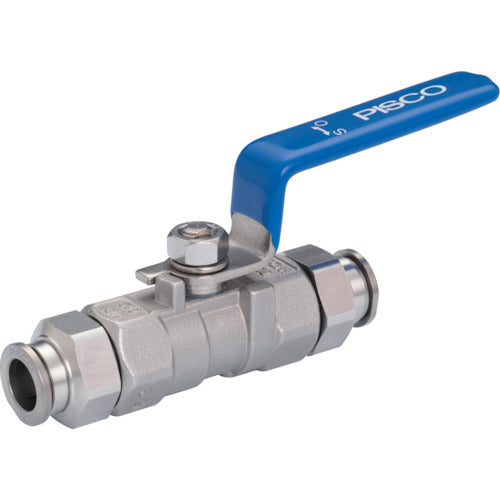

PISCO SUS316 equivalent ball valve 1 piece, reduced bore type SUS316 one-touch fitting type NSBV10-1010 1 piece

Catalog number: NSBV10-1010 Features: ● SUS316 equivalent (SUS316 or CF8M) is used for the material in the liquid contact parts. ● A structure has been adopted that prevents the stem that secures the handle from coming off. ● Input and output can be installed in either direction. ● Redux bore type. ● Comes with a SUS316 one-touch fitting that enables smart piping. Specifications: ● Height (mm): 50 ● Operating pressure (MPa): 1.0 ● Operating temperature range (℃): -5 to 150 ● Tube outer diameter (mm): 10 ● Compatible tube outer diameter D (mm): 10 ● Fluid used: air, water (conditions apply), other chemicals, etc. (conditions apply) ● Port compatible tube outer diameter (mm): 10 ● Maximum operating pressure (MPa): 5.5 ● Operating vacuum pressure (kPa): -100 Material/Finish: ● Body: Stainless steel (equivalent to SUS316) ● Ball: Stainless steel (equivalent to SUS316) ● Ball seat: Fluorine resin (PTFE) ● Handle: Stainless steel (equivalent to SUS304)
