Pizzato Safety Door Switch FD Type 20 F Type FD2093-F 1 pc

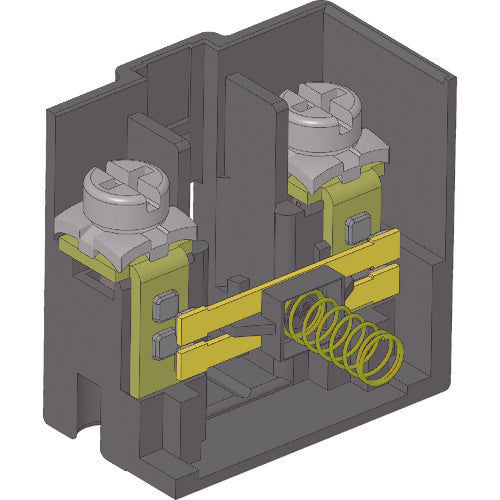

Catalog number: FD2093-F Features: ●When the terminal screw is loosened, it is held in the contact block, so you can work smoothly without worrying about losing it. ●This safety door switch has excellent durability and a long life. ●It has a safe structure that prevents your hands from touching the terminals when wiring. ●There is enough play to insert the actuator, so unexpected machine stoppages are unlikely to occur. ●With a twin bridge (two lines) mechanism, even if one side of the contact is insulated due to rust or deterioration, the other side of the contact will continue to conduct electricity. ●The head can be replaced every 90°, and the actuator can be positioned from a total of five directions (including the top). Specifications: ● Actuator shape: Straight key ● Contact configuration: 1NO+2NC ● Width (mm): 40 ● Depth (mm): 38.6 ● Height (mm): 108.9 ● Protection class: IP67 ● Shape: FD ● Positive opening mechanism ● Conduit shape (PG13.5) ● Protection class: IP67 ● Certification standards: CE, IMQ, UL, CCC, EAC ● Compliance standards: EN ISO14119, EN ISO13849-1, EN 60204-1) ● Low voltage directive, EMC directive ● Mechanical life 1 million cycles Material/Finish: ● Housing: Metal ● Actuator: Stainless steel
