Pizzato Limit Switch FP Type 6 Adjustable Roller Notch Lever 56 Type FP 656 1 pc

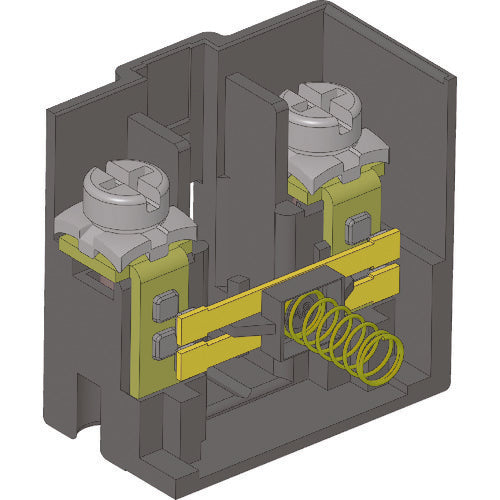

Catalog number: FP 656 Features: ●This limit switch has a housing made of glass fiber reinforced technopolymer, and is flame retardant and shock absorbing. ●With a twin bridge (two lines) mechanism, even if one side of the contact is insulated due to rust or deterioration, the other side of the contact will still be energized. ●Double insulation structure. Specifications: ●Actuator shape: Adjustable roller notch lever 56 type ●Contact configuration: 1NO+1NC ●Width (mm): 40 ●Height (mm): 121.9-180.9 ●Depth (mm): 38.6 ●Protection class: IP67 ●1NO+1NC slow action positive opening mechanism ●Certification standards: IMQ, UL, CCC, EAC ●Conduit shape (PG13.5) ●Low voltage directive, EMC directive
