Pizzato Limit Switch FP Type 9 Roller Piston Plunger 15 Type FP 915 1 pc

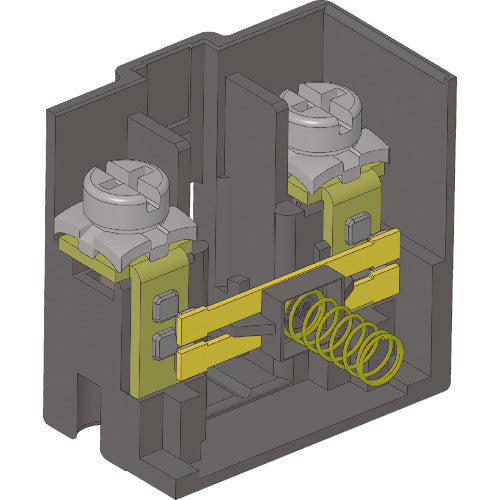

Catalogue number: FP 915 Features: ●This limit switch has a housing made of glass fiber reinforced technopolymer, and has excellent flame retardancy and shock absorption properties. ●Twin bridge (two lines) mechanism, so even if one side of the contact is insulated due to rust or deterioration, the other side of the contact will still be energized. ●Double insulation structure. Specifications: ●Actuator shape: Roller piston plunger 15 type ●Contact configuration: 2NC ●Width (mm): 40 ●Height (mm): 116.2 ●Depth (mm): 38.6 ●Protection class: IP67 ●2NC slow action positive opening mechanism ●Certification standards: IMQ, UL, CCC, EAC ●Conduit shape (PG13.5) ●Low voltage directive, EMC directive
