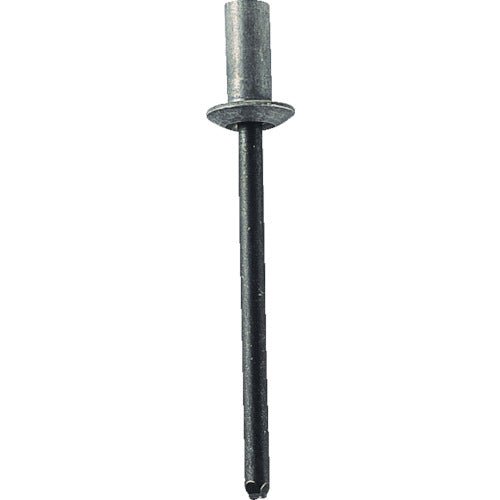

POP Shield Rivet (Aluminum Iron) φ4.8, AD65 (1000 pieces) AD65 1 box

Catalogue number: AD65 Features: ● The rivet part is formed in a cap shape and has no through hole, so it has a high shielding effect. ● After fastening, the mandrel head is held inside the rivet and will not fall off. Applications: ● For areas that require watertightness, such as electrical sheet metal, roofs, and truck bodies. Specifications: ● Crimping plate thickness (mm): 6.4-8.0 ● Rivet length (mm): 13.1 ● Flange diameter (mm): 9.6 ● Rivet diameter (mm): 4.8 ● Pilot hole diameter (mm): 4.9 ● Shear load (N): 2340 ● Tensile load (N): 3350 ● Boxed Material/Finish: ● Rivet body (flange): Aluminum (A5056) ● Mandrel (shaft): Steel (hard steel wire)
