RATOC USB Serial Converter (USB C Type) RS-USB602FC 1 piece

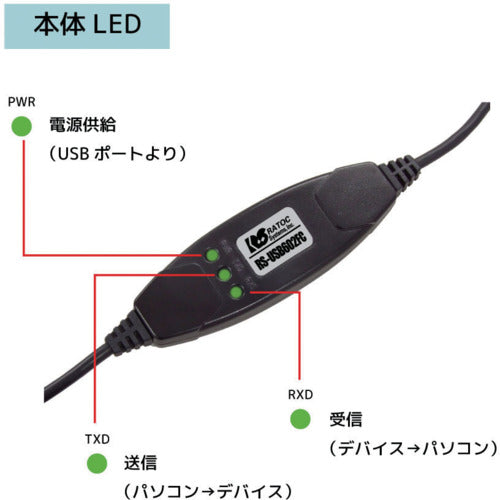

Catalog number: RS-USB602FC Features: ●Connects RS-232C devices to the USB port. ●Compatible with measurement and control devices such as sequencers. ●Easy setup with no settings required, recognized as a COM port. ●COM port applications can be used. ●Sample programs for Android and simple terminal apps are provided. ●Communication monitor LEDs provide clear indication of communication status. ●Compatible with Windows, Windows Server, and Android OS. ●Does not contain 10 hazardous substances. ●Lightweight, smart design makes it easy to carry. Specifications: Width (mm): 28 Depth (mm): 85 Height (mm): 11 Power consumption (W): 0.11 Interface: USB Type-C Compatible models: Windows PCs and Android devices equipped with USB ports Compatible OS: Windows 11, Windows 10, Windows Server 2022, Windows Server 2019, Android OS * Windows supports both 32-bit and 64-bit DL software: Serial communication driver (for Windows), sample program (for Windows, for Android) Interface: [USB] Compliant with USB Specification Rev2.0, [RS-232C] RS-232C RS-232C maximum DTE speed: up to 230Kbps LED indicator: POWER /TXD /RXD Connection connector: USB (Type-C plug), RS-232C (D-Sub9 male / fixing screw #4-40 hex female) Power supply voltage: DC + 5V (USB (obtained from bus power) Current consumption: Average 14mA (5V), maximum 22mA (5V) Maximum DTE communication speed 230K Material/Finish: Plastic Set contents/Accessories: Product body, Setup guide (with warranty)
