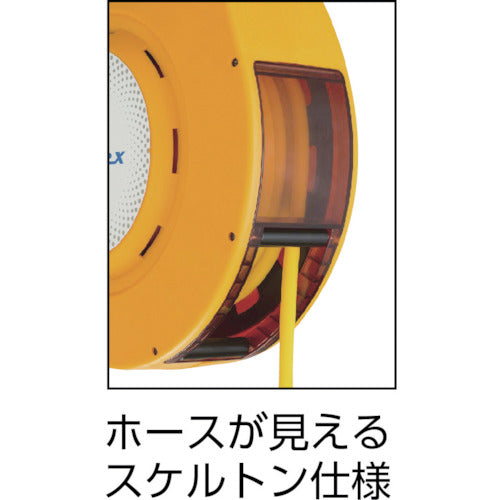

Relex Air S Replacement Hose Assy 3H5-A0033 1 piece

Catalog number: 3H5-A0033 Features: ● Genuine replacement hose for Leelex Air S. ● Excellent heat resistance and spatter-resistant hose. Specifications: ● Hose inner diameter x outer diameter (mm): 8.3 x 12.5 ● Total hose length (m): 10 ● Primary mounting side: Rc1/4 ● Secondary mounting side: With socket coupler ● Primary hose length (m): 1 ● Secondary hose length (m): 10 ● Maximum operating pressure (MPa): 1.47 ● Outer diameter (mm): 12.5 ● Compatible models: NAR-810WOR/NAR-810WGR ● Operating pressure: 1.47Mpa ● Operating temperature range: -10 to 60°C Material/Finish: ● Flame-retardant special polyurethane (with braid)
