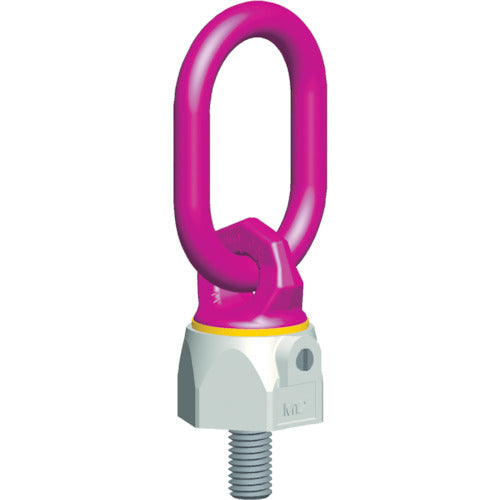

RUD Vario Ring VWBG-M10 VWBG-M10 1 piece

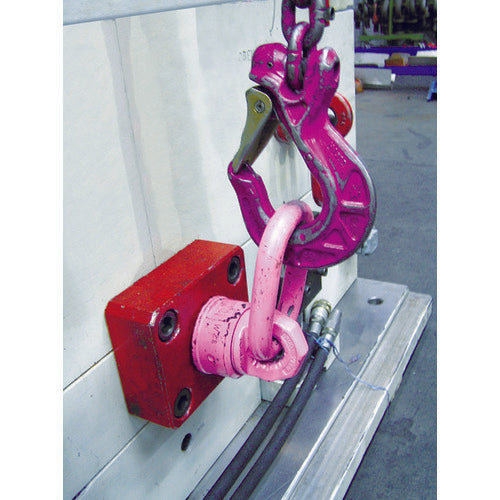

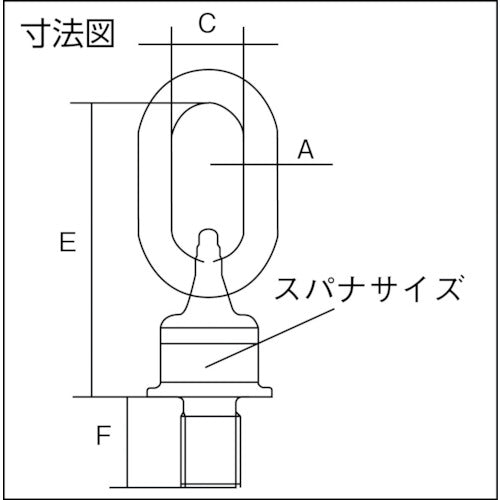

Catalog number: VWBG-M10 Features: ●Smooth rotation even under load. ●Loads can be applied in all directions. ●Single ball bearing type. ●CE mark certified, can be installed on molds for overseas use. ●Surface treatment with pink powder, body is plated. Applications: ●Used for hoisting and inverting molds, precision and machine tools, and heavy objects. Specifications: ●Basic load capacity (t): 0.45 ●Load capacity (kN): 8 ●Bolt size: M10 ●Total length (mm): 29 ●Neck length (mm): 17 ●Hole diameter (mm): 78 ●Spanner size (mm): 30 ●Dimensions (mm) A: 8 ●Dimensions (mm) C: 29 ●Dimensions (mm) E: 78 ●Dimensions (mm) F: 17 Material/Finish: ●Nickel chrome molybdenum steel
