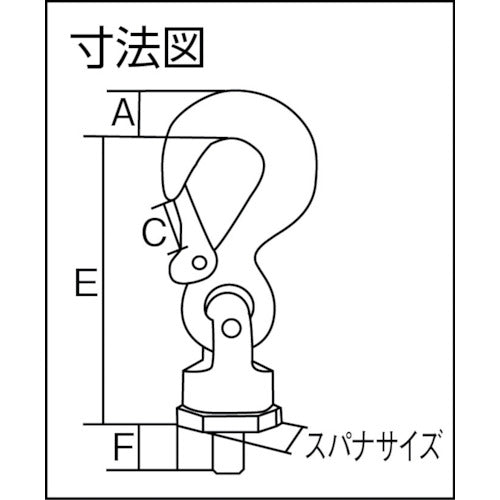

Catalog number: PP-S-M36 Features: ●No need for connecting hardware such as shackles, shortening lifting time. ●Double ball bearings are enclosed, so you can safely invert the work without worrying about the bolts loosening. ●The hook is marked with the maximum opening value. ●The surface is treated with pink powder, and the body is plated. ●Smooth rotation for inversion work while lifting. ●CE mark certified, can be attached to molds for overseas use. ●Compatible with any type of lifting equipment, including wire ropes, chain slings, and belt slings. ●Precision forging and special heat treatment make it strong. Applications: ●Used for lifting and inverting molds, precision and machine tools, and heavy objects. Specifications: ●Basic load capacity (t): 8 ●Bolt size: M36 ●Spanner size (mm): 90 ●Dimension (mm) A: 49 ●Dimension (mm) C: 48 ●Dimension (mm) E: 310 ●Dimension (mm) F: 54 ●Fatigue testing conducted for each lot ●100% magnetic particle inspection Material/Finish: ●Nickel chrome molybdenum steel
