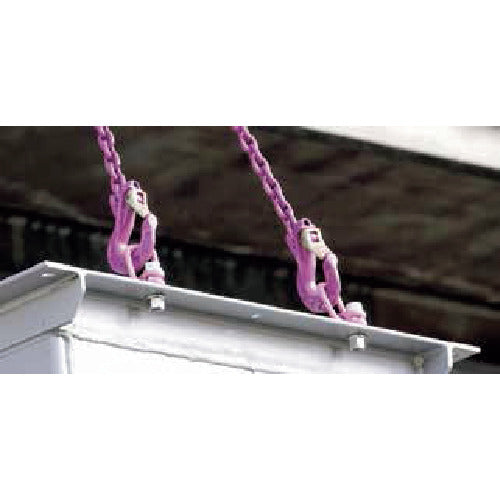

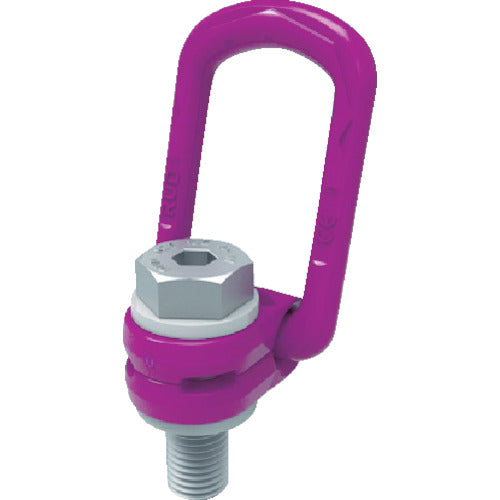

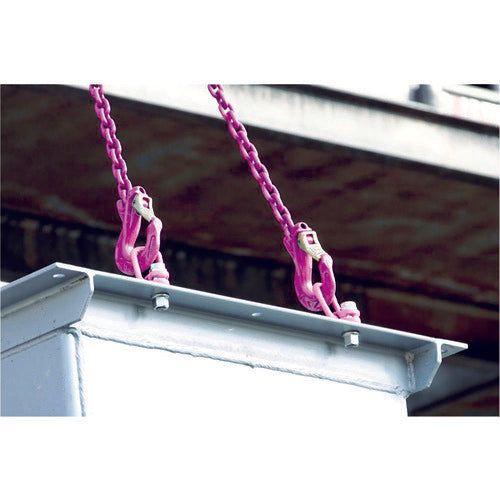

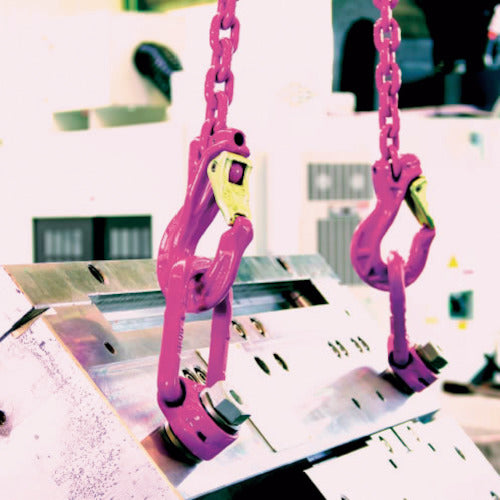

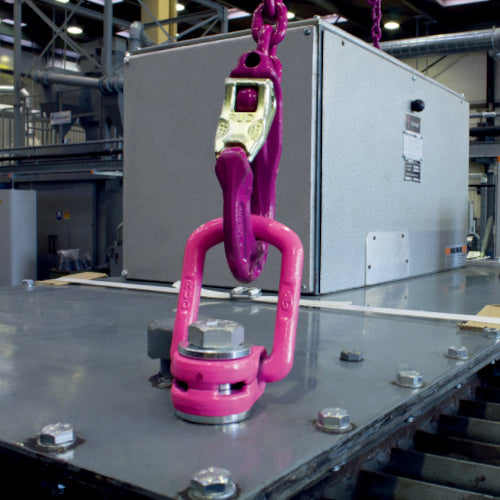

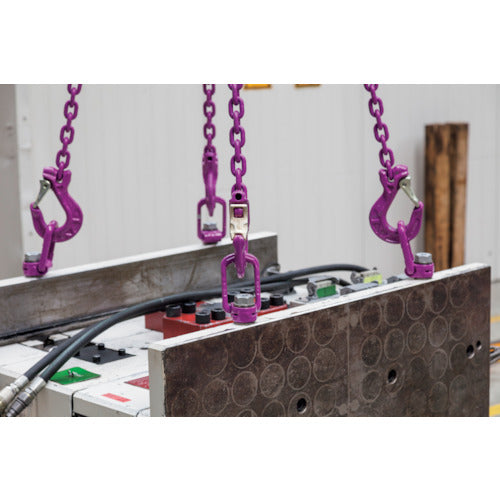

Catalog number: VLBG-PLUS-M36 Features: ● Now you can safely perform horizontal eyebolt hanging work, which was previously impossible. ● The main body rotates 360° in the load direction without the bolt loosening. ● The use of ICE steel bolts makes it more durable against impact loads. (Up to M24) ● CE mark certified product, can be installed on molds for overseas use. ● High strength and compact design. ● Seamless ring for strength. ● Surface coating (patented) that changes color depending on the ambient temperature. ● Can accommodate up to M100 female threads by using a conversion adapter (sold separately). Applications: ● Used to hang heavy objects such as molds, concrete (PC), wind power, civil engineering, shipbuilding, precision/machine tools, and transportation. Specifications: ●Basic load capacity (t): 8 ●Bolt size: M36 ●Spanner size (mm): 55 ●H (mm): 63 ●Dimension (mm) A: 77 ●Dimension (mm) B: 122 ●Dimension (mm) C: 82 ●Dimension (mm) F: 26.5 ●Dimension (mm) H: 63 ●Dimension (mm) T: 197 Material/Finish: ●ICE steel
