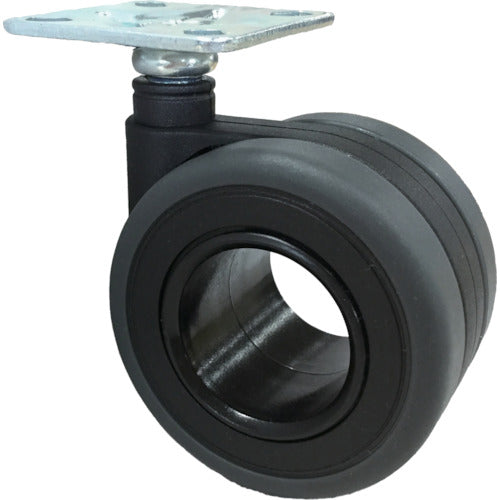

SAMSONG Design Double Wheel Caster "Koo" Plate Swivel 65mm KOO-P-65 1 piece

Catalogue number: KOO-P-65 Features: ● A highly designed caster with a hollow center. ● The shape also makes it difficult for dust to accumulate. Applications: ● Used for the wheels of shelf chests, wire furniture, chairs, and design carts. Specifications: ● Wheel diameter D (mm): 65 ● Type: Swivel ● Allowable load (daN): 39.2 ● Allowable load (kgf): 40 ● Wheel width (mm): 41 ● Mounting height H (mm): 93.5 ● Mounting seat A (mm): 47 ● Mounting seat B (mm): 47 ● Mounting pitch X (mm): 32.5 ● Mounting pitch Y (mm): 32.5 ● Mounting hole diameter P (mm): 6.2 ● Allowable load (N): 400 ● Plate type ● Swivel Material/Finish: ● Metal fittings: Steel ● Wheels: Nylon + polyurethane
