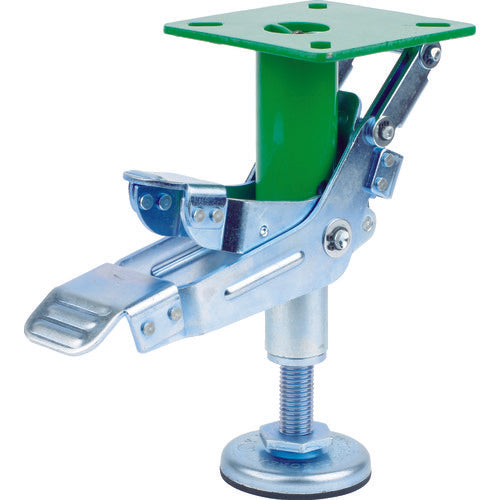

SAMSONG Cart Movement Prevention Stopper 178-237mm TPYFL-1 1 piece

Catalogue number: TPYFL-1 Features: ●Easy one-touch operation for fastening and unlocking. ●Equipped with a function for balancing uneven surfaces and leveling adjustment. ●Compression spring installed inside the pipe provides high braking force. Applications: ●Cart stopper Specifications: ●Allowable load (daN): 294 ●Allowable load (kgf): 300 ●Appropriate mounting height (mm): 190 ●Minimum height (mm): 178 ●Maximum height (mm): 237 ●Stroke (mm): 24 ●Mounting base (mm): 120 x 120 ●Mounting pitch (mm): 83.5 x 83.5 ●Plate type ●Leveling adjustment: 35mm Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Powder-coated zinc plating
