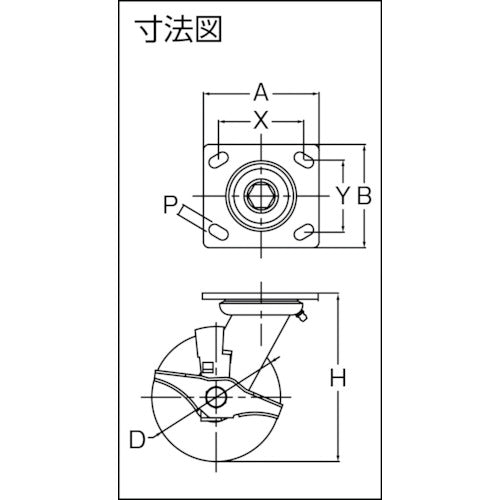

Catalog number: TP6680-MIR TG TLB Features: ● A caster made of special moisture-resistant urethane material, with excellent water resistance and durability. ● Equipped with a swivel lock function that can be switched between fixed and swivel, and can be locked at four points every 90 degrees. Applications: ● Suitable for heavy load transport equipment. Specifications: ● Wheel diameter D (mm): 203 ● Type: Swivel type (with stopper) ● Allowable load (daN): 216 ● Allowable load (kgf): 220 ● Wheel width (mm): 50 ● Mounting height H (mm): 241 ● Mounting seat A (mm): 114 ● Mounting seat B (mm): 102 ● Mounting hole diameter P (mm): 10 ● Mounting pitch X x Y (mm): 92 x 67 (76 x 76) ● Plate type ● Swivel type (with stopper) Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent zinc plating ● Wheels: PP wheels, rubber (with cover)
