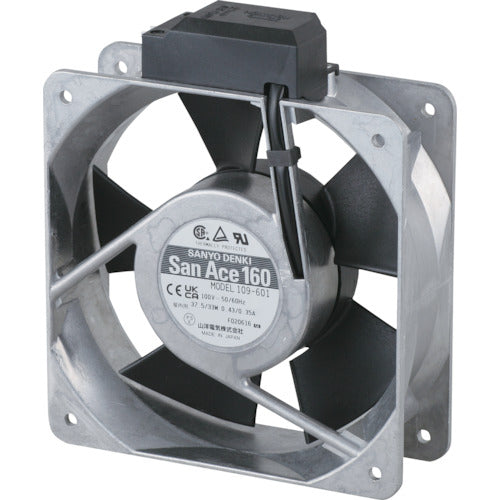

SanAce AC fan (160 x 51 mm AC 100V plug cord included) S-109-601 1 unit

Catalog number: S-109-601 Features: ● Forced air cooling of heat sources and control panels of equipment by fan blowing. ● Extends equipment life by controlling temperature rise of components. ● Easy to operate by simply connecting AC power. (2 wires) Applications: ● Cooling of heat sources such as communication equipment, control equipment, and power supplies. ● Blowing, circulating, and diffusing air. Specifications: ● Corner size (mm): □160 ● Thickness (mm): 51 ● Rated voltage (V): AC100 ● Air volume (［［M3］］/min) 50Hz: 7.2 ● Air volume (［［M3］］/min) 60Hz: 8.5 ● Static pressure (Pa) 50Hz: 156.8 ● Expected life (hours): 25,000 ● Static pressure (Pa) 60Hz: 166.6 ● Sound pressure level (dB(A)) 50Hz: 56 ● Sound pressure level (dB(A)) 60Hz: 60 ● Operating voltage range: Rated voltage ±10%, operating temperature range: -30 to 60°C (no condensation) ● Protection function: Burnout protection (limits current when blades are constrained to prevent windings from heating up) ● Definition of expected life: 90% survival rate at rated voltage, continuous operation, and ambient temperature of 60°C Material/Finish: Frame: Aluminum die-cast; Blades: Resin (PPHOX); Set contents/Accessories: Power supply plug cord 1m (60mm fan is not included due to lead wire specification)
