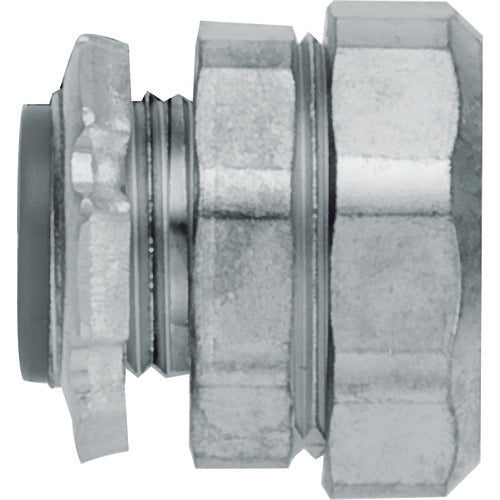

SANKEI K-Flex Connector, Knockout Connection, with Parallel Pipe Threads, KBBG12, 1 Piece

Catalog number: KBBG12 Features: ●Since an insulator is attached to the wire passage port, it is not necessary to install an insulating bushing. Applications: ●For knockout connection of K-Flex to control panels. Specifications: ●Type: Connector (for knockout connection) ●Dimensions (mm) A: 29.2 ●Connection screw S1 (mm): 20.9 ●Dimensions (mm) L1: 10.0 ●Connection screw nominal diameter: G1/2 ●Dimensions (mm) L2: 18 ●Maximum outer diameter of insertable cable (mm): 10 ●Ambient temperature for use: -20 to 100°C ●Not waterproof ●Compatible K-Flex: KMB, KIB Material/Finish: ●Body: Zinc alloy die-cast Note: ●Additional shipping charges for Okinawa and remote islands
