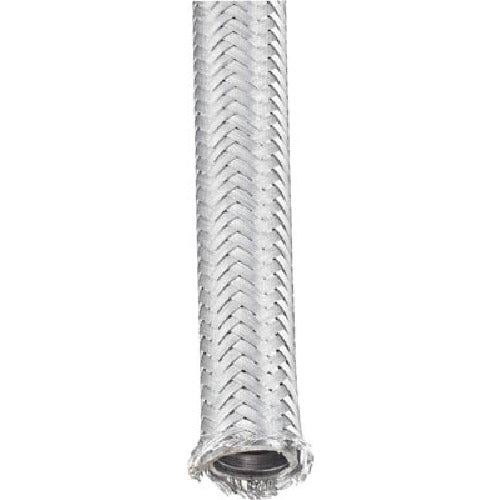

SANKEI Electrical conduit, braided Keiflex (for machinery/plants, fixed piping), inner diameter 35.0 x outer diameter 41.1 mm, KIB36, 1 roll

Catalog number: KIB36 Features: ● Use heat-resistant cables in high-temperature locations, and cables/vinyl cords in other locations. Use standard type (KM type) accessories. However, if using with high-temperature specifications or high-tension specifications, use KB type. ● Excellent heat resistance and mechanical strength, and should be used in high-temperature locations, locations where welding beads are generated, locations where hot cutting chips are present, and piping under tension. Applications: ● Low electrical resistance, making it suitable for piping to prevent noise. Specifications: ● Inner diameter (mm): 35.0 ● Outer diameter (mm): 41.1 ● Length (m): 15 ● Minimum bending radius (mm): 180 ● Ambient temperature for use: -50 to 150°C ● Fixed minimum bending radius (mm): 180 ● Noise and spatter resistance ● Non-waterproof ● Fixed piping Material/Finish: ● Braided galvanized steel wire Note: ● Additional shipping charges for Okinawa and remote islands
