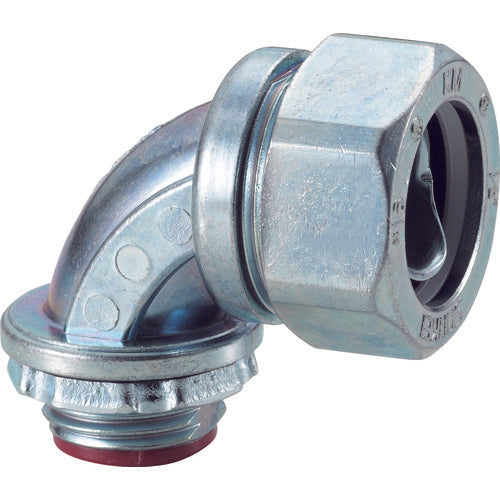

SANKEI 90° connector (for knockout connection) KM90BG16 1 piece

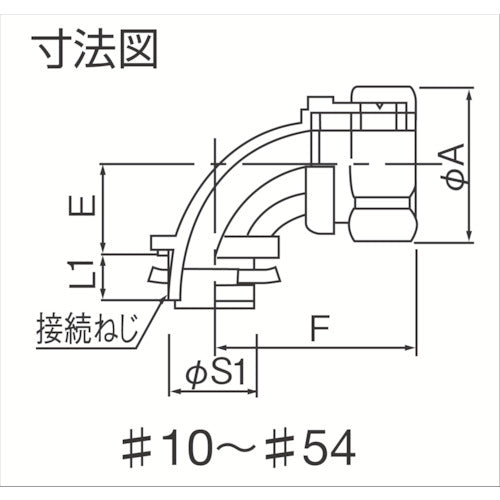

Catalog number: KM90BG16 Features: ●An insulator is attached to the wire passage, so there is no need to install an insulating bushing. Applications: ●A 90° connector for connecting K-Flex to knockouts on control panels. Specifications: ●Type: 90° connector ●Dimensions (mm) A: 34.2 ●Connection screw S1 (mm): 20.9 ●Dimensions (mm) L1: 10 ●Connection screw nominal diameter: G1/2 ●Length (mm): 35 ●Outer diameter (mm): 34.2 ●Maximum insertable cable outer diameter (mm): 13 ●Dimensions (mm) E: 19.5 ●Dimensions (mm) F: 35 ●Ambient temperature during use: -20 to 90°C ●Compatible K-Flex: KMS, KMV, KPF, KIC, KIH, KIV, KPBF, KUU, KCS, KMB, KIB, KM, KI Materials/Finish: ●Body: Zinc alloy die-casting Note: ●Additional shipping charges for Okinawa and remote islands
