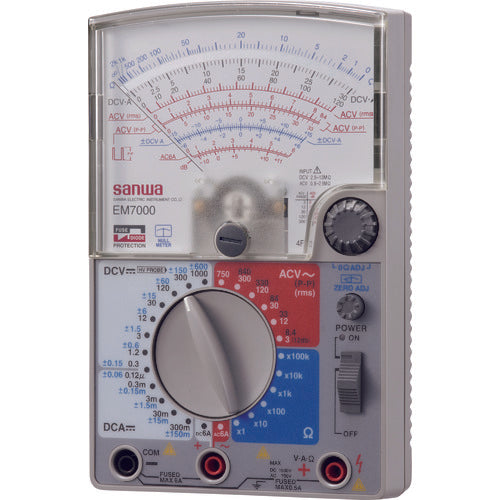

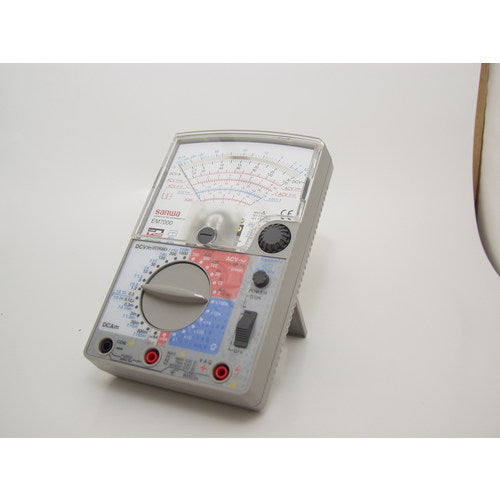

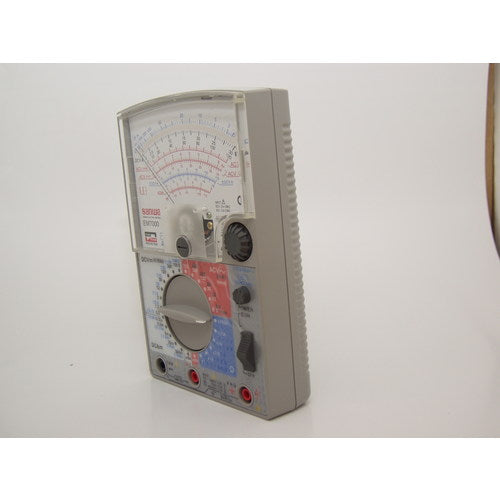

SANWA Analog Multi-Tester High Sensitivity Type EM7000 1 unit

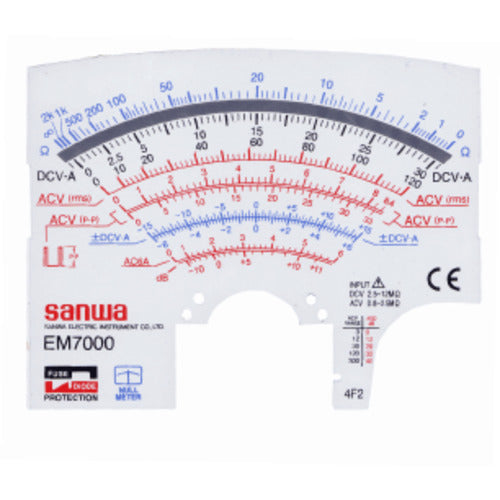

Catalog number: EM7000 Features: ●High sensitivity FET electronic tester with DC current 0.12μA range. ●Wide range measurement from 0.2 to 200MΩ is possible. ●CE standard product. ●Square wave pulse PP value measurement is possible. ●DCV/DCA is compatible with zero center meter. ●Sine wave AC 40Hz to 1MHz frequency characteristics (AC low voltage) ●Low frequency output: -10 to 51dB Applications: ●For electrical work. ●For facility equipment maintenance. ●For home appliance repair. Specifications: ● DC voltage (V): 1000 ● AC voltage (V): 750 ● DC current (A): 6 ● AC current (A): 6 ● Resistance (Ω): 200M ● Calibration documents: Supported ● Power supply (V): 2 AA batteries (R6) / 1 stacked 9V (6F22) (monitor battery included) ● Width (mm): 106 ● Depth (mm): 46 ● Height (mm): 165 ● Power supply: 2 AA batteries (R6) / 1 stacked 9V (6F22) (monitor battery included) ● Body dimensions (mm): 165 x 106 x 46 ● DCV / DCA uses zero center meter ● Comes with 1 spare fuse (F1176) ● Fuse specification 1: Φ5 x 20mm 0.5A / 250V 1.5kA ceramic tube (F1176) ● Fuse specification 2: Φ5 x 20mm 6.3A/250V 1.5kA ceramic tube (F1177) Set contents/accessories: ●Instruction manual ●Test lead TL-21a ●1 spare fuse (F1176) Caution: ●Do not use on power lines exceeding 6 kVA. ●Do not input signals that exceed the maximum rated input value. ●Do not use if the main unit or test leads are damaged. ●Do not hold the test pin side of the test lead beyond the flange during measurement. ●Do not switch to other functions or ranges, or change the plug during measurement.
