SANWA Display Cable Metal Connector Type KB-CHD155N 1 Piece

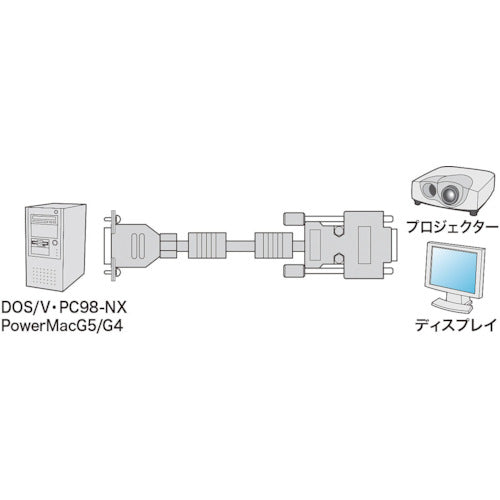

Catalog number: KB-CHD155N Features: ●Composite coaxial cable is used, so it is resistant to noise and has very little signal loss, making it a high-quality cable that causes very little image degradation even in high-resolution mode. ●A sealed aluminum shield is applied to the inside of the high-density copper braided shielding material, making it a cable that is less susceptible to low- to high-frequency noise. ●Metal processing is applied, making it resistant to external noise and less susceptible to radio interference. ●Metal connector cover provides a high level of shielding effect. ●By using cutting pins, contact noise is shut out and the gold plating is applied to make it resistant to signal degradation due to rust and aging. Applications: ●For cables connecting PCs to displays, projectors, etc. Specifications: ●Color: Navy ●Cable length (m): 5 ●Shielding method: Double shielding ●Cable thickness (mm): 7.4 ●Standard: UL20276 ●Connector shape <1>: Mini D-sub 15 pin (male) - Mini D-sub 15 pin (male) ●Connector shape <2>: Inch screw (4-40) - Inch screw (4-40) ●Complies with RoHS regulated 6 substances ●Specification cable <1>: Composite coaxial ●Specification connector <1>: Metal shield
