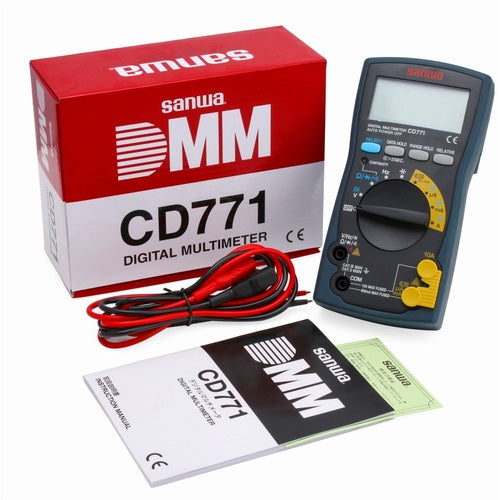

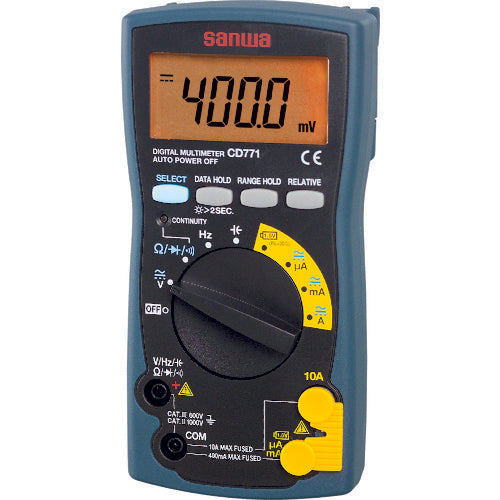

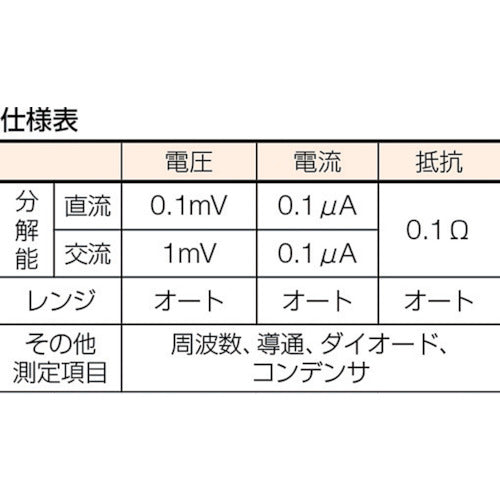

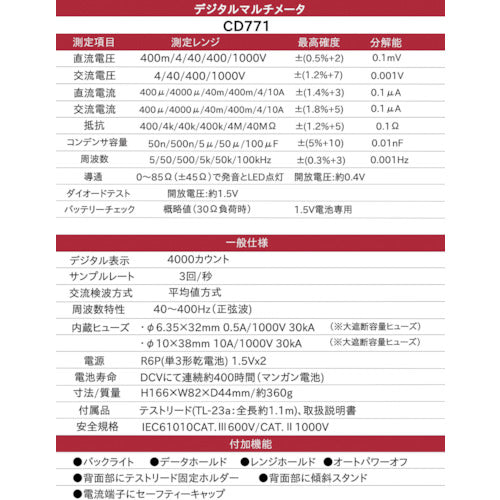

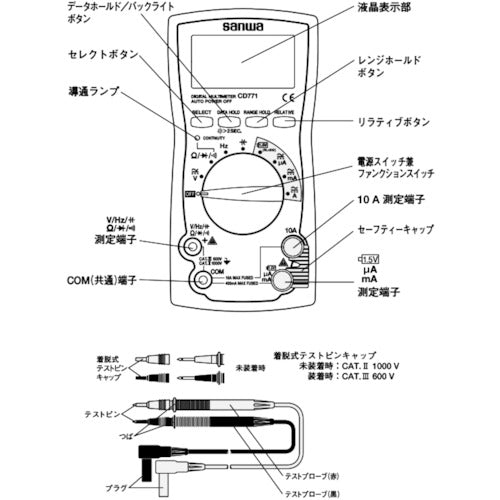

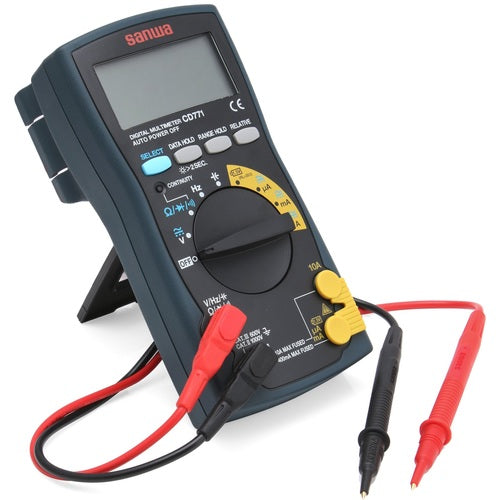

Catalog number: CD771 Features: ● Equipped with data hold, range hold, and relative value measurement functions. ● Large LCD display with backlight function. ● High breaking capacity (30kA) fuse for safety design. ● CE standard product. ● Impact-resistant elastomer is used for the outer circumference of the main body. ● Current measurement terminal with safety cap is provided. ● Maximum display: 4000 counts ● Auto power off function that activates after about 30 minutes and can be disabled ● Frequency measurement (supports zero cross signal only, input resistance approx. 2kΩ) ● Capacitor capacity measurement (cannot measure aluminum electrolytic capacitors with large leakage current) Applications: ● For equipment maintenance, etc. ● For research and development. ● For electronic work. ● For checking the performance of electronic components. Specifications: ● DC voltage (V): 1000 ● AC voltage (V): 1000 ● DC current (A): 10 ● AC current (A): 10 ● Resistance (Ω): 40M ● Detection method: Average value rectification (MEAN) ● Battery check: Approximate value (30 Ω load) For 1.5 V batteries only ● Continuity check: Sound and LED lights up at 0 to 85 Ω (±45 Ω) Open voltage: Approx. 0.4V●Calibration documents: Supported●Power supply (V): 2 AA batteries (R6P) (included)●Width (mm): 82●Depth (mm): 44●Height (mm): 166●Power supply: 2 AA batteries (R6P) (included)●Continuous use time (h): Approx. 400 hours●Maximum display (counts): 4000●Capacitor (F): 100μ●Frequency (Hz): 100k●Diode test: Open voltage: 1.5V●Maximum display: 4000 counts●30KA high breaking capacity fuse installed●With continuity check function that lights up LED●1.5V battery check●CE standard product●Battery life 400 hours●Fuse specification 1: Φ6.35×32mm 0.5A/1000V 30kA ceramic tube (F1200)●Fuse specification 2: Φ10×38mm 10A/1000V 30kA ceramic tube (F1201) Set contents/accessories: ●Test lead (TL-23a) ●Instruction manual Caution: ●Do not use if the main unit or test lead is damaged. ●Do not hold the test pin side of the test probe from the flange during measurement. ●Connect the ground side of the test lead (black test lead) first, then the live side (red test lead). When disconnecting, remove the live side first. ●Do not switch to another function or range or insert the test lead plug into another measurement terminal during measurement. ●Use fuses of the specified shape and rating.
