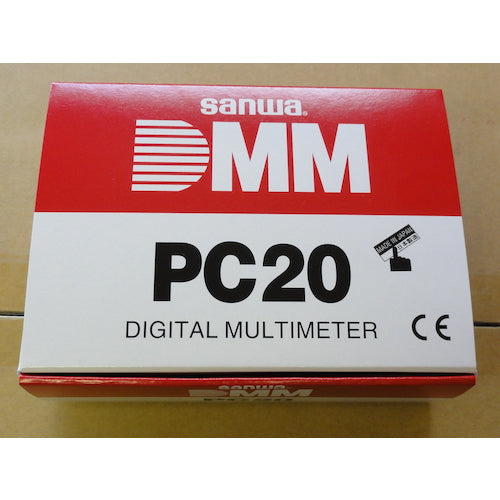

Catalogue number: PC20 Features: ●Can be connected to a computer using the separately sold dedicated software and optical link USB cable to import data. ●Includes data hold and range hold. ●Long-term measurements are possible using the separately sold AC adapter. ●Data can be saved to a PC using the separately sold USB cable and software. ●CE standard product. ●Includes cover to prevent incorrect insertion of 4 and 10A current terminals. ●Maximum display: 4000 counts Applications: ●For research and development, and importing data into a computer. ●For electronics work. ●For electrical work and equipment maintenance. Specifications: ● DC voltage (V): 1000 ● AC voltage (V): 750 ● DC current (A): 10 ● AC current (A): 10 ● Resistance (Ω): 40M ● Detection method: Average value rectification (MEAN) ● Continuity check: Buzzer sounds at 10 to 120 Ω ● Calibration documents: Supported ● Power supply (V): 2 AA batteries (R6P) (included) ● Width (mm): 90 ● Depth (mm): 48 ● Height (mm): 167 ● Power supply: 2 AA batteries (R6P) (included) ● Width (mm): 90 ● Depth (mm): 48 ● Height (mm): 167 ● Continuous use time (h): Approximately 150 ● Maximum display (count): 4000 ● Capacitor: 100 μF ● Diode test (open voltage approximately 1.5 V) ● Battery life 150 hours ● Comes with a cover to prevent incorrect insertion ● Fuse specification 1: Φ5 × 20 mm 0.5A/250V ceramic tube fuse/breaking capacity 1.5kA●Fuse specification 2: Φ6.3×32mm 12.5A/250V glass tube fuse/breaking capacity 125A Set contents/accessories:●Instruction manual●Test lead TL-21a●Holster H-70 Caution:●Do not use if the main unit or test lead is damaged. ●Do not hold the test pin side of the test probe from the flange during measurement. ●Connect the ground side (black test lead) of the test lead first, then connect the live side (red test lead). When disconnecting, remove the live side first. ●Do not switch to other functions or ranges or plug the test lead plug into other measurement terminals during measurement. ●Use fuses of the specified shape and rating.
