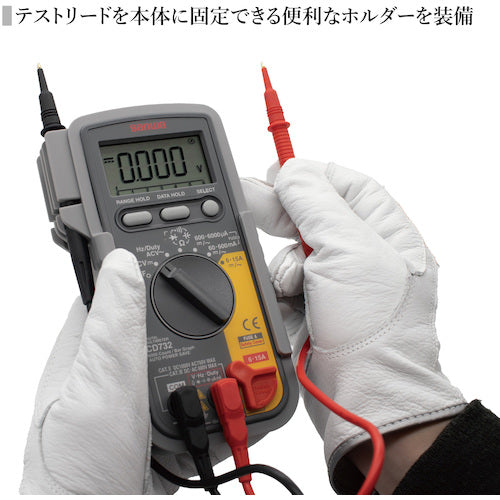

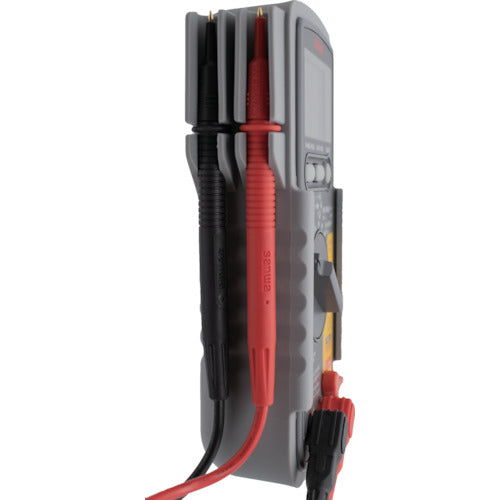

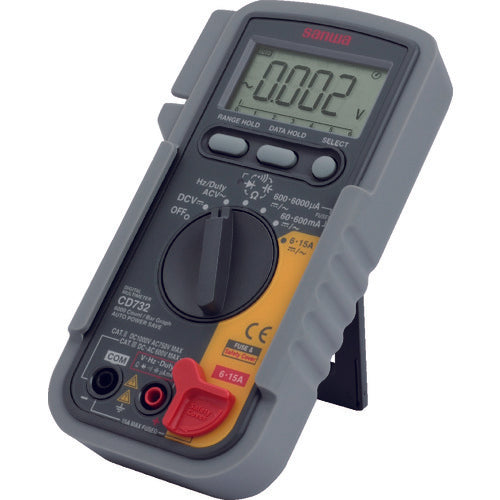

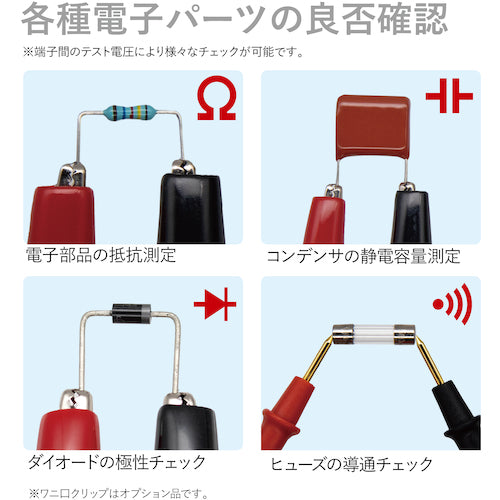

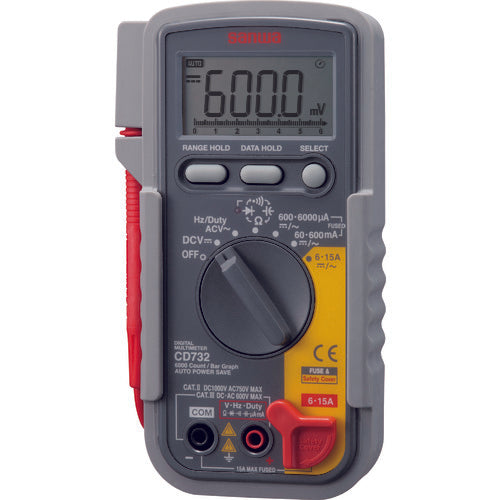

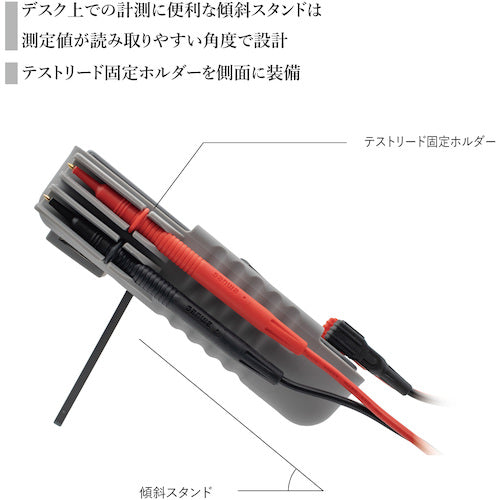

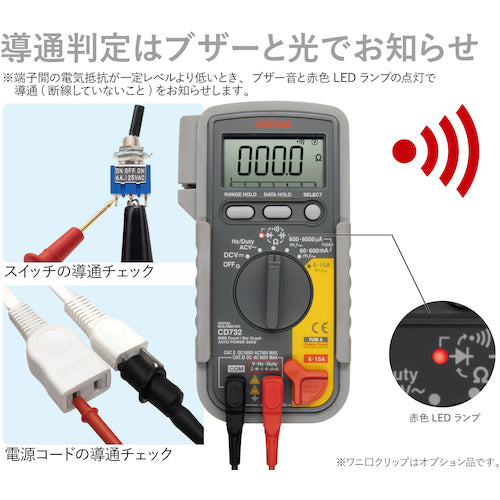

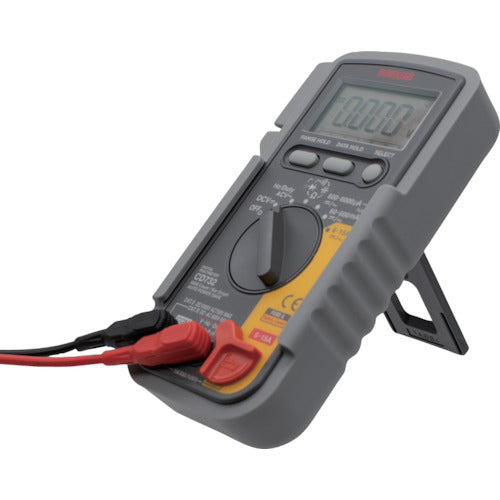

Catalog number: CD732 Features: ● Test leads can be stored on the side. ● With data hold and range hold buttons. ● Equipped with a bar graph on the LCD. ● Maximum display: 6000 counts ● Safety design using flame-retardant materials for the main body case and circuit board ● Continuous measurement of up to 6A for both DCA/ACA, and up to 15A for up to 10 seconds ● Continuity check can be confirmed by a buzzer sound and a red LED lamp lighting ● 6A and 15A measurement terminals have a safety cover to prevent incorrect insertion Applications: ● For maintenance of equipment, etc. ● For school teaching materials and practical training. Specifications: ● DC voltage (V): 1000 ● AC voltage (V): 750 ● DC current (A): 15 ● AC current (A): 15 ● Resistance (Ω): 60M ● Detection method: Average value rectification (MEAN) ● Continuity check: Buzzer and red LED lights up when the range is 10 to 60Ω or less. ●Calibration documents: Available●Power supply (V): 2 AA batteries (R6) (monitor batteries included)●Width (mm): 90●Depth (mm): 48●Height (mm): 167●Power supply: 2 AA batteries (R6) (monitor batteries included)●Capacitor capacity (F): 4000μ●CE standard IEC61010 CAT3 600V●Maximum display (counts): 6000●Frequency (Hz): 99.99k●Duty ratio: 20-80%●Diode test: Open voltage 2.7V●Maximum display: 6000 counts●Auto power save (approx. 16 minutes)●CE standard●Battery life 400 hours●6A and 15A measurement terminals have safety covers to prevent incorrect insertion●Wide range of capacitance measurement functions (0.01nF to 3999μF)●Auto power save (approx. 16 minutes) can be deactivated●Fuse specification 1: Φ10×38mm 16A/1000V ceramic tube (F1203) * Fuse specification 2: Φ6.3×32mm 400mA/1000V ceramic tube (1211) Set contents/accessories: * Test lead (TL-25a) * Holster H-70 * Instruction manual Caution: * Do not use if the main unit or test lead is damaged. * Do not hold the test pin side of the test probe from the flange during measurement. * Connect the ground side (black test lead) of the test lead first, then connect the live side (red test lead). When disconnecting, remove the live side first. * Do not switch to another function or range or plug the test lead plug into another measurement terminal during measurement. * Use fuses of the specified shape and rating.
