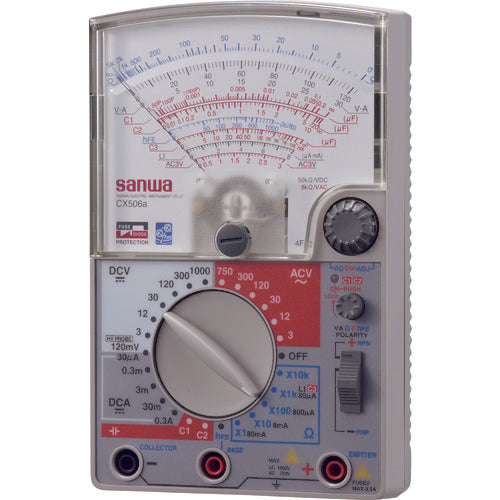

SANWA Multi-function Analog Multitester CX506A 1 unit

Catalog number: CX506A Features: ●Capable of measuring capacitance equipped with a transistor oscillator. ●High input resistance of 50kΩ/V. ●DC polarity can be switched. ●26ch switch allows for wide range of measurements. ●Capacitor capacitance measurement from 50pF to 2000μF possible. ●DC current amplification factor hFE can be measured. Applications: ●For electrical work, facility equipment maintenance, and home appliance repair. ●For electrical work. Specifications: ● DC voltage (V): 1000 ● AC voltage (V): 750 ● DC current (A): 0.3 ● Resistance (Ω): 50M ● Calibration documents: Supported ● Power supply (V): 2 AA batteries (R6P), 1 9V manganese battery (6F22) (monitor battery included) (two types of batteries are required to measure all items) ● Width (mm): 106 ● Depth (mm): 46 ● Height (mm): 165 ● Power supply: 2 AA batteries (R6P), 1 9V manganese battery (6F22) (monitor battery included) (two types of batteries are required to measure all items) ● Capacitor capacity (F) 50p to 2000μ ● DC current amplification factor hFE (transistor hFE): 0 to 1000 ● Width x Depth x Height: 106 x 46 x 165mm ● Safety standard: IEC61010 CAT.3 600v●Power supply: 2 AA batteries (R6P), 1 9V manganese battery (6F22) (monitor battery included) (2 types of batteries required to measure all items)●Includes 1 spare fuse (F1176)●Fuse specifications: Φ5.0×20mm 250V/0.5A/IR1500A ceramic tube (F1176) Set contents/accessories:●Instruction manual●Test lead TL-21a●Clip lead CL-506a●1 spare fuse Caution:●Do not use on power lines exceeding 6 kVA. ●Do not input signals exceeding the maximum rated input value. ●Do not use if the main unit or test leads are damaged. ●Do not hold the test pin side of the test lead beyond the collar during measurement. ●Do not switch to other functions or ranges or change the plug during measurement.
