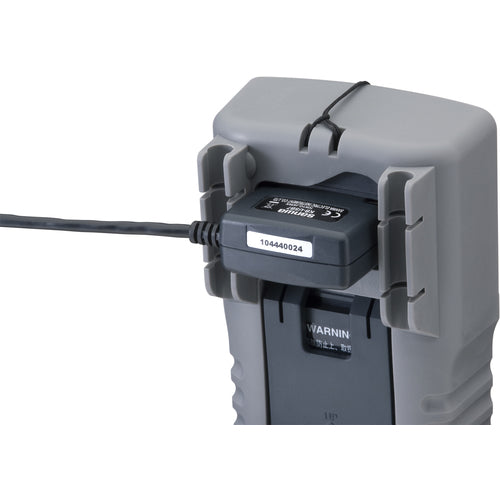

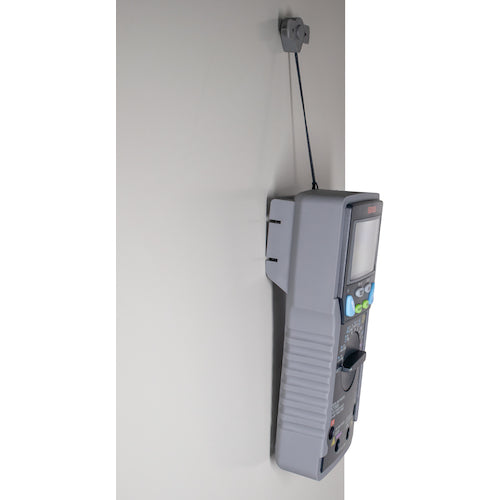

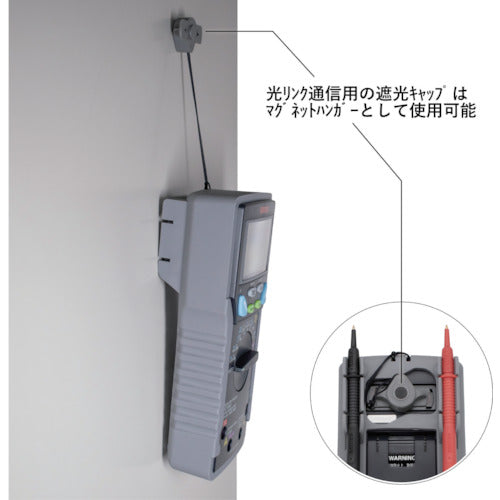

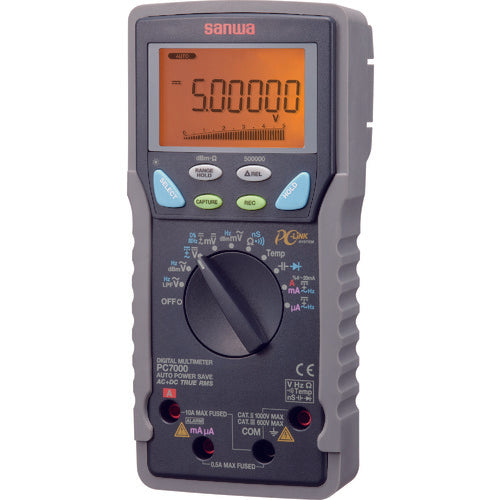

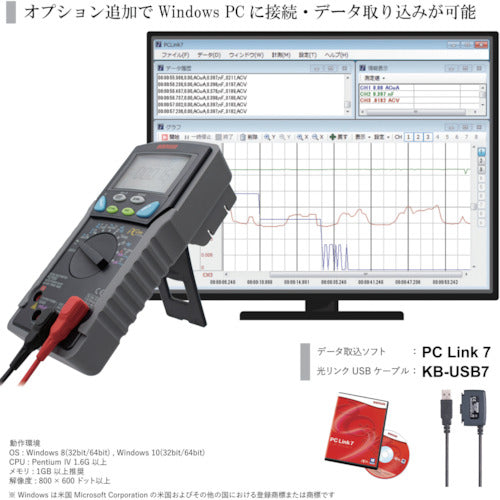

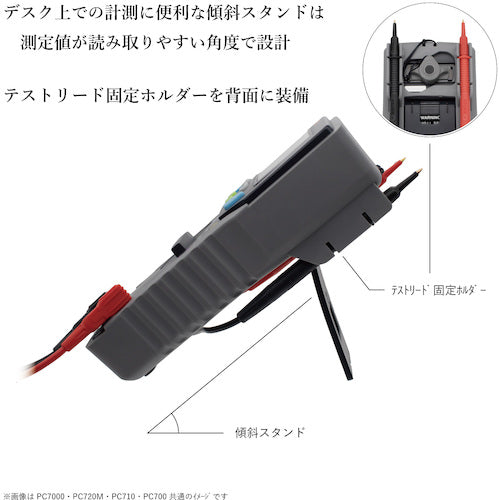

Catalog number: PC7000 Features: ●True RMS measurement possible (AC only). ●Dual display of voltage and frequency, etc. is possible. ●Minimum resolution is 0.01mV (ACV/DCV only). ●Equipped with capture function and MAX/MIN recording function. ●LCD part is backlit. ●Data can be imported to a PC using the separately sold dedicated software and optical link USB cable. ●Complies with the new IEC. ●Comes with a magnet that can be hung on a metal surface. ●Conductance measurement is possible. ●Temperature measurement is possible using the included K-type thermocouple sensor. Applications: ●For research and development. ●For electronic work. ●For electrical work and equipment maintenance. Specifications: ●DC voltage (V): 1000 ●AC voltage (V): 1000 ●DC current (A): 10 ●AC current (A): 10 ●Resistance (Ω): 50M ●Detection method: True RMS rectification ●Continuity check: Buzzer sounds at 20 to 200Ω or less Open voltage less than 3V●Calibration documents: Supported●Power supply (V): 9V alkaline battery (6LF22) x 1 (included)●Width (mm): 86●Depth (mm): 52●Height (mm): 184●Power supply: 9V alkaline battery (6LF22) x 1 (included)●Capacitor capacity (F): 25m●Frequency (Hz): 10-50K●Logic frequency (HZ): 5-1M●Duty ratio: 0-100%●Diode test: Open voltage less than 3.5V●Maximum display: 500000 counts●Width x Depth x Height: 86 x 52 x 184mm●Battery life: 100 hours●Detection method: True RMS rectification●Power supply: 9V alkaline battery (6LF22) x 1 (included)●New model fuse specification 1: 0.4A/1000V IR30kA Φ6.3 x 32mm Ceramic tube (F1211) ● New model fuse specification 2: 11A/1000V IR20kA Φ10×38mm ceramic tube (F1412) ● Old model fuse specification 1: 0.63A/500V IR200kA Φ6.3×32mm ceramic tube (F1198) ● Old model fuse specification 2: 12.5A/500V IR20kA Φ6.3×32 mm ceramic tube (F1199) Set contents/accessories: ● Instruction manual ● Test lead TL-23a ● Holster H-700 ● K-type thermocouple temperature sensor K-250PC Caution: ● Do not use if the main unit or test lead is damaged. ● Do not hold the test pin side of the test probe beyond the flange during measurement. ● Connect the ground side (black test lead) of the test lead first, then connect the live side (red test lead). When disconnecting, first separate the live side. ●Do not switch to another function or range or insert the test lead plug into another measurement terminal during measurement. ●Use fuses of the specified shape and rating.
