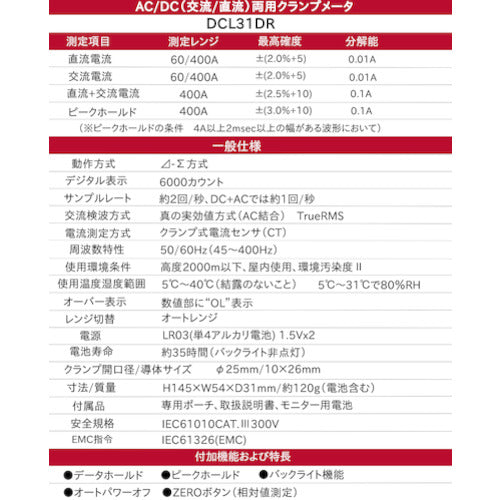

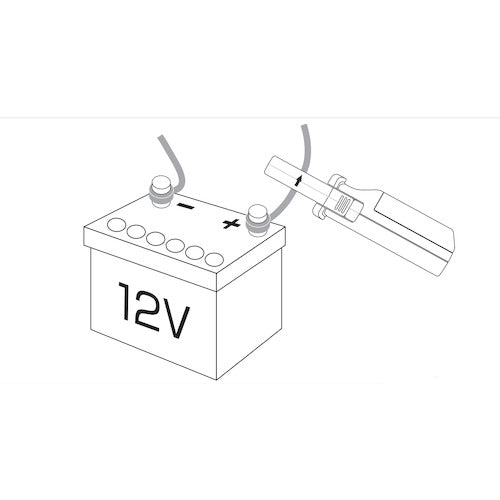

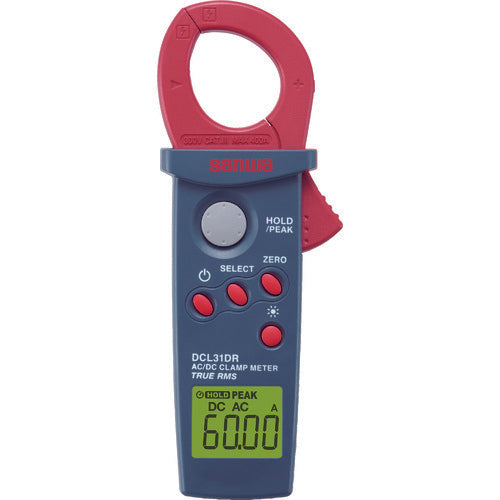

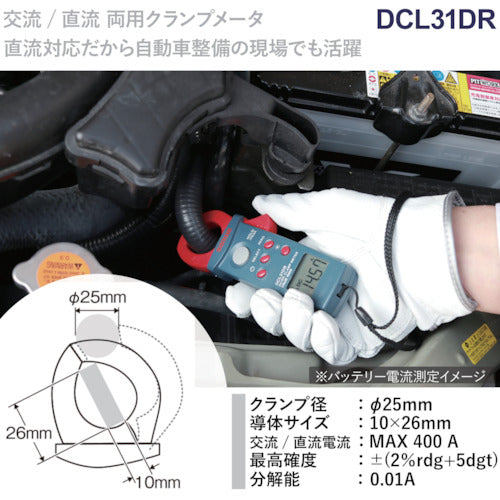

Catalog number: DCL31DR Features: ● DC+AC (TrueRMS) function allows for more accurate measurements. ● Peak hold, auto power off (approx. 15 minutes), and backlight functions. ● CE compliant. ● Safety standard: IEC61010CAT [R3] 300V compliant. ● Can be used for both AC and DC current ● True RMS measurement method ● Robust CT sensor ● Backlight function ● Compact pocket size Applications: ● For equipment maintenance. ● For measuring the starting current of power equipment. ● For maintaining automobile batteries. Specifications: ●DC current (A): 400 ●AC current (A): 400 ●Detection method: True RMS rectification ●Calibration documents: Supported ●Power supply (V): 2 AAA alkaline batteries (LR03) (included) ●Width (mm): 54 ●Depth (mm): 31 ●Height (mm): 145 ●Power supply: 2 AAA alkaline batteries (LR03) (included) ●Continuous use time (h): Approximately 35 hours ●Clamp diameter: φ25mm ●Maximum display (counts): 6000 ●Maximum display: 6000 counts ●Maximum measurement conductor diameter: 26mm ●Safety standard IEC61010 CAT［［Ｒ３］］300V Set contents/accessories: ●Instruction manual ●Carrying case C-DCL10 Caution: ●Do not use this device on circuits with a voltage to ground exceeding 300 Vrms. ●Do not switch to other functions during measurement. ●When connecting or disconnecting from a live conductor, always wear insulating protective gear such as electrical rubber gloves. ●Do not input a signal that exceeds the maximum rated input value. ●Do not hold the part beyond the barrier of the clamp sensor during measurement.
