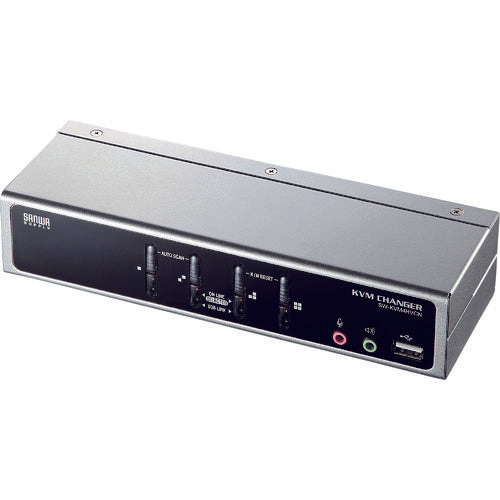

SANWA USB/PS/2 console compatible PC automatic switch (4:1) SW-KVM4HVCN 1 unit

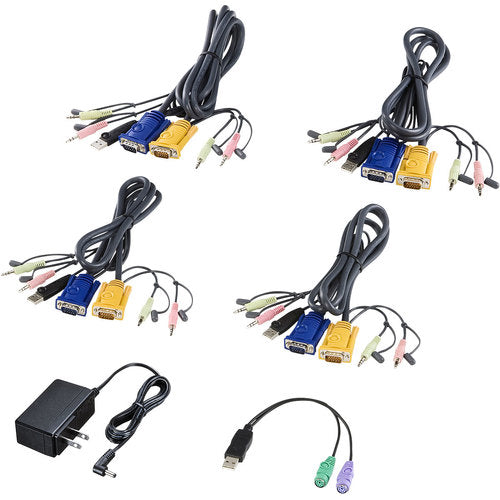

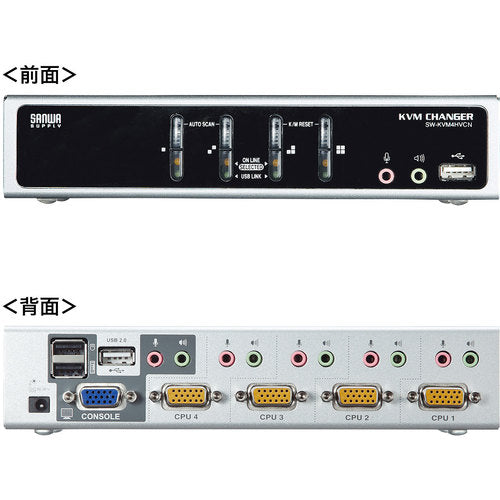

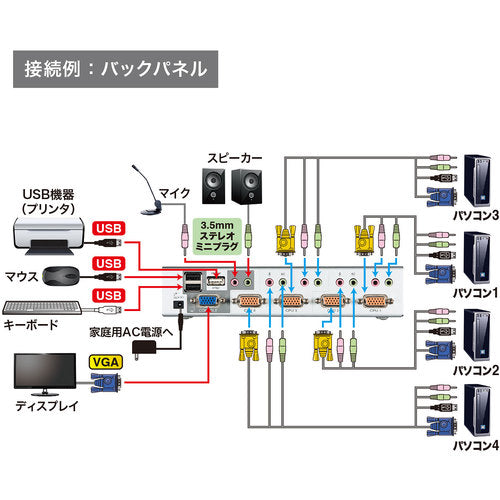

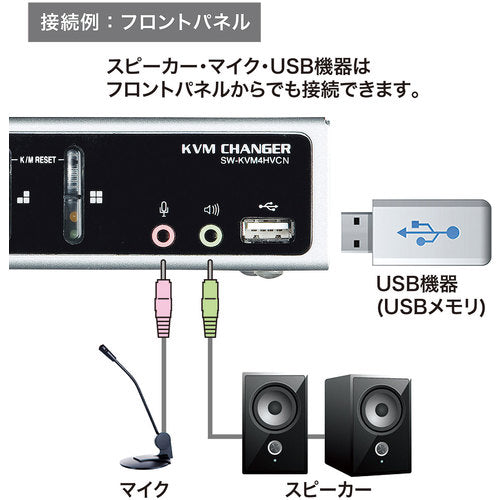

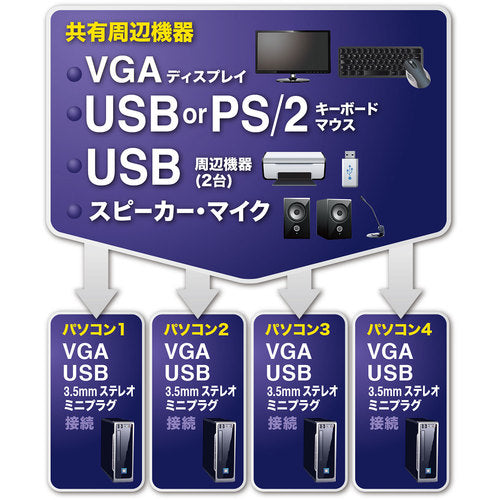

Catalog number: SW-KVM4HVCN Features: ● Equipped with display emulation function, this is a 4-port KVM switch that supports both USB and PS/2 consoles and can share a USB 2.0 hub. ● One set of keyboard, mouse, and display can be used to switch between 4 computers. ● Keyboard and mouse are compatible with both USB and PS/2 by using the included USB-PS/2 conversion cable. Cross-interface connection such as USB mouse and PS/2 keyboard is also possible. ● Equipped with 2 USB 2.0 hub ports, various USB devices such as USB printers can be switched and shared by multiple computers. In addition, since individual switching is possible, it is possible to operate a USB device on another computer while working on another computer. ● Equipped with display emulation function (EDID reading circuit). By reading the EDID of the display and saving it in the KVM, and responding to each port during DDC communication, problems such as changing screen resolution and screen size during back boot do not occur. ● Speaker and microphone can also be shared. Individual switching is also supported, so the console device and the speaker/microphone can be switched separately. You can play music from another computer while working on your computer, and check the work status by voice. ● Speaker and microphone ports are also installed on the front panel. It is easy to connect and disconnect, so it is convenient when using IP phones such as Skype. ● Independent switching of KVM, USB hub, and audio is possible. ● Since the keyboard port is emulated, full startup is possible without switching ports when restarting (rebooting). ● Equipped with an OSD (on-screen display) function, you can easily switch each device individually, switch all at once, and check the switching status. Equipped with mouse emulation function. It is compatible with a wide range of mice equipped with multi-function buttons and multi-function functions. Specifications: Compatible PCs: DOS/V desktop PCs or laptops, Apple Mac series (models with USB A connector, mini D-Sub (HD) 15-pin display connector) Compatible keyboards: PS/2 keyboards, USB keyboards *2, 3, 4 Compatible mice: PS/2 mice, USB mice *1, 4 Compatible displays: Multi-scan displays with mini D-sub (HD) 15-pin connectors Compatible resolution: Can display up to 2048 x 1536 dots (DDC2B compatible) Compatible speakers and microphones: 3.5mm stereo mini plug compatible speakers and microphones Switching method: Main unit button switching, hotkey switching, OSD switching, auto scan switching, switching sound: Beep sound can be set to ON/OFF Power supply (V): AC adapter (DC5.3V2.4A) Size (mm): W200 x D42 x H70 Reads the EDID of the display and saves it in the KVM. By responding to each port during DDC communication, the problem of screen resolution changing or screen size changing during back boot does not occur. Note: Compatible with Windows OS, MacOS, and Linux. Can be used in environments with multiple operating systems. ●Supports three switching methods: hotkey, main body switching button, and OSD switching. ●Can also connect only a mouse and keyboard. (Use the display by connecting it directly to the PC.) ●Uses an all-in-one connector that combines the signals of the keyboard, mouse, and display into one. Easy to connect and neatly wired. ●No software installation required; simply connect and you can use all functions.
