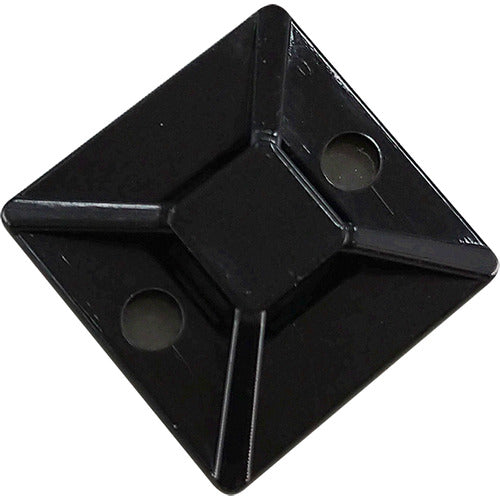

SG Thai Base (Strong Adhesive, Black) BS-20GB BS-20GB 1 bag

Catalog number: BS-20GB Features: ● A cable tie fixture that can be used to fix bundled wires to any position on a panel, etc. ● Cable ties can be inserted either vertically or horizontally into the tie base. (BS-50 is one-way only) ● You can choose between adhesive tape or screw fastening depending on the installation location. (BS-15 is not fixed with screws) ● In addition to the characteristics of nylon, the tape material has good heat resistance. Specifications: ● Color: Black ● Fixing method: Adhesive tape and screws ● Length (mm): 19.2 ● Width (mm): 19.2 ● Height (mm): 4 ● Cable tie width (mm): ~4.1 ● Operating temperature range (℃): 75℃ or less ● Dimensions (MM)_C: 4.1 ● Dimensions (MM)_G: 3.2 ● Dimensions (MM)_S: 1.3 ● Length (mm): 19.2 ● RoHS directive compliant Material/Finish: ● Polyamide resin (nylon 6) black ● Acrylic foam (gray) Tape thickness 0.8mm Caution: ● When fixing with adhesive tape, be sure to remove oil, water, rust, etc. from the installation location before installing. ● When attaching, press firmly to install. ● Avoid installing on fragile or uneven surfaces.
