SHINOHARA Panel LED Lighting (with terminal block) CLED-1004TB2WG 1 piece

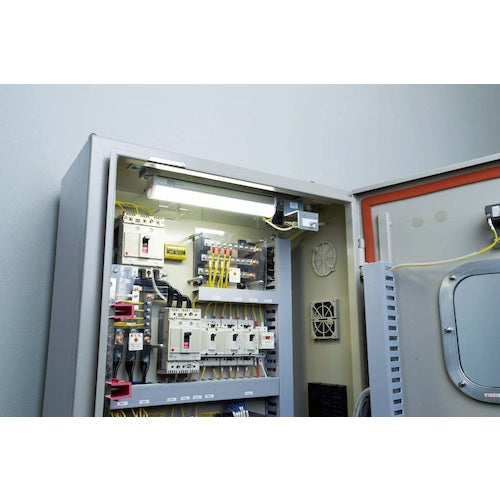

Catalog number: CLED-1004TB2WG Features: ●Achieves approximately 1.5 times the brightness of a fluorescent lamp (FL10W). ●Compact and simple design makes it easy to install inside a panel and lightweight. ●Consumes approximately half the power compared to conventional fluorescent lamps. ●The LED device used is manufactured by Nichia Corporation. ●The integrated terminal block makes the unit smaller and lighter! ●You can choose from two types of terminal blocks: screw terminals and plug-in terminals. ●Use for panel lighting applications such as distribution boards, switchboards, and control panels. Applications: ●For panel lighting applications such as distribution boards, switchboards, and control panels. Specifications: ● Brightness (lm): 600 ● Width (mm): 42 ● Length (mm): 345 ● Total length (mm): 345 ● Power consumption (W): 4.5 ● Color temperature (K): 5000 ● Type: 2-pole plug-in terminal type ● Light source color: Daylight white ● Height (mm): 41 ● Installation specifications: Wire diameter 0.5 to 4 sq ● Irradiation angle (°): 160 ● Center illuminance (lx): 150 ● Rated life (hours): 40000 ● Voltage (V): AC100 to 240 ● Power supply (V): AC100 to 240 ● Withstand voltage 1500V/min Operating temperature -20℃ to +50℃ ● LED light life: Approximately 40000 hours at 25℃●Ambient temperature during use: -20℃ to +50℃ (no freezing or condensation)●Reference illuminance: Approximately 150Lx (1m directly below)●Rated voltage: AC100V to 240V (±10%) 50/60Hz●Illumination angle: Approximately 160°●Insulation resistance: 100MΩ or more at DC500V megger●Replaces 10W fluorescent lamps●Color temperature: 5000k●Light source color: Daylight white●RoHS compliant Material/Finish:●Aluminum●Polycarbonate
