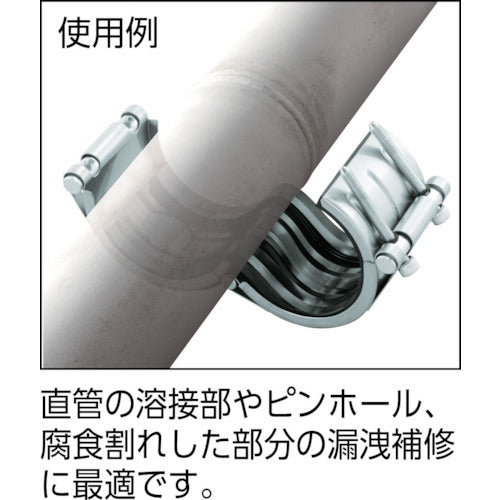

Catalog number: C-150EC Features: ●Leaks from pin holes in butt welds between straight pipes and from corroded cracks can be repaired without cutting off the water supply. ●Work can be done without stopping the fluid. ●Lightweight, one-piece structure means parts will not fall off and it can be installed safely. Applications: ●For repairing various types of piping. ●For water and hot water Specifications: ●Nominal diameter A: 150 ●Nominal diameter B: 6 ●Casing width (mm): 106.0 ●Rubber lip spacing (mm): 60 ●Tightening bolt hex hole size (mm): 8 ●Standard torque value (N・m): 20 ●Compatible pipe outer diameter (mm): 165.2 ●Compatible fluids: water, hot water, air, chemicals ●Compatible piping: carbon steel pipe for piping/VLP/PLP/stainless steel pipe/steel pipe size PE pipe ●Fluid temperature: -30 to 100℃ ●Operating pressure: liquid/1.0MPa, gas such as air/0.7MPa ●Japan Water Works Association certified product Material/Finish: ●Casing: Stainless steel (SUS304) ●Bolts: Chromoly ●Rubber: Ethylene propylene rubber (EPDM)
