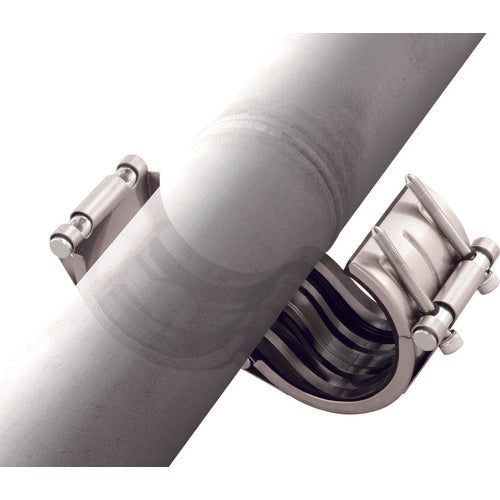

Catalog number: C-20NS Features: ●●Repairs leaks from pinholes in welded or corroded straight pipes. ●Can be installed without cutting off water supply. ●Can be used without stopping the fluid. ●Lightweight and one-piece construction prevents parts from falling off and allows for safe installation. Applications: ●For repairing various types of piping. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Casing width (mm): 52.0 ●Rubber lip spacing (mm): 31 ●Tightening bolt hex size (mm): 13 ●Compatible pipe outer diameter (mm): 27.2 ●Compatible fluids: oil, gas, water ●Compatible piping: carbon steel pipes for piping/VLP/PLP/stainless steel pipes/PE pipes of steel pipe size ●Fluid temperature: -20 to 80°C ●Operating pressure: liquid/1.0MPa, gas and other gases/0.7MPa Material/Finish: ●Casing/Bolt: Stainless steel (SUS304) ●Rubber: NBR
