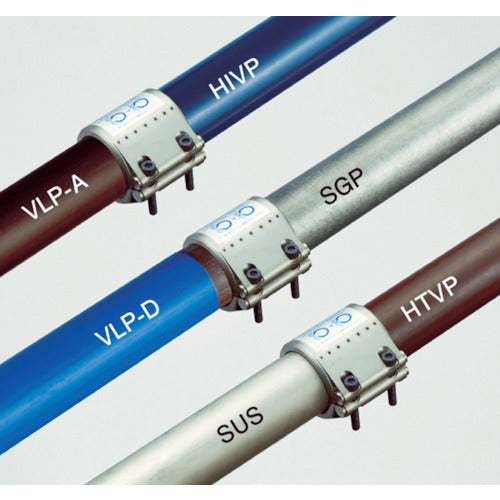

Catalog number: GX-150E Features: ●Metal touch structure eliminates the need for a torque wrench, making construction management even easier. Applications: ●For various piping such as water supply, hot water supply, cold and hot water, and drainage. Specifications: ●Nominal diameter A: 150 ●Nominal diameter B: 6 ●Casing width (mm): 111.0 ●Rubber lip spacing (mm): 54 ●Tightening bolt hexagonal hole size (mm): 10 ●Compatible pipe outer diameter (mm): 165.2 ●Compatible fluids: water, hot water, air, chemicals ●Compatible piping: carbon steel pipe for piping/VLP/PLP/stainless steel pipe ●Fluid temperature: -30 to 90°C (cannot be used with steam) ●Operating pressure: water, chemicals/1.6MPa air/1.0MPa hot water supply/1.6MPa for temperatures below 80°C, 1.0MPa for temperatures between 80°C and 90°C ●Japan Water Works Association certified product Material/Finish: ●Casing/Bolt: Stainless steel (SUS304) ●Rubber: Ethylene propylene rubber (EPDM)
