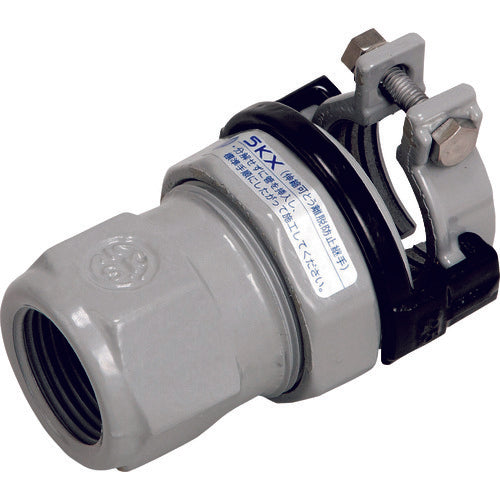

SK Kawanishi Polyethylene Pipe Fitting SKX Female Threaded Socket P20 SKX-MS-P20 1 Piece

Catalog number: SKX-MS-P20 Features: ● Pipes can be connected easily and quickly. ● Installation is completed by simply inserting the pipe and tightening it. ● Flexible and expandable, it can absorb external forces. ● It can be easily removed and reinstalled, and is also suitable as a repair material. ● It can be connected without an in-core. Applications: ● Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ● Nominal diameter (mm): 20 ● L (mm): 63 ● L1 (mm): 29 ● A (mm): 50 ● L0 (mm): 84 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 45 ● Nominal diameter: P20 ● B (mm): 16 ● Female thread size: 3/4 ● Operating pressure: 1MPa ● For polyethylene pipes ● Operating temperature: 0 to 45℃ Material/Finish: ● Vermicular cast iron
