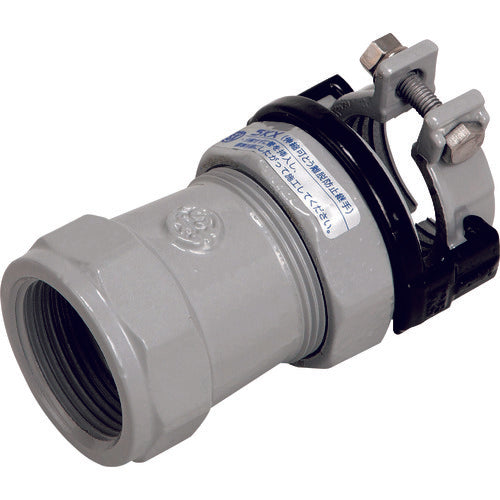

SK Kawanishi Polyethylene Pipe Fitting SKX Branch Stopcock Socket P40 SKX-BS-P40 1 pc
SK Kawanishi Polyethylene Pipe Fitting SKX Branch Stopcock Socket P40 SKX-BS-P40 1 pc
Regular price
¥4,735
Regular price
Sale price
¥4,735
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: SKX-BS-P40 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide on the pipe, making it ideal for repair and maintenance work. ●Has elastic flexibility and can absorb external forces. ●Easy to remove and reinstall, and is also suitable as a repair material. ●Can be connected without an in-core. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 40 ●L (mm): 94 ●L1 (mm): 53 ●L2 (mm): 29 ●d (mm): 40 ●A (mm): 76 ●L0 (mm): 118 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●Nominal diameter: P40 ●L3 (mm): 22.0 ●Thread size: 2 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
