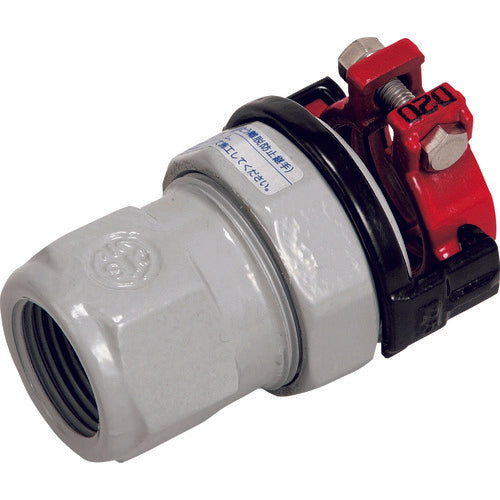

SK Kawanishi Coupling for Inner and Outer Coated Steel Pipes SKX Female Thread Socket D50 SKX-MS-D50 1 pc

Catalog number: SKX-MS-D50 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Slidable on the pipe, ideal for repair and maintenance work. ●Flexible and expandable, absorbing external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●Can be connected without stripping the coating of inner and outer coated steel pipes or thread cutting. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 50 ●L (mm): 95 ●L1 (mm): 39 ●A (mm): 76 ●L0 (mm): 120 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●Nominal diameter: D50 ●B (mm): 25 ●Thread size: 2 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
