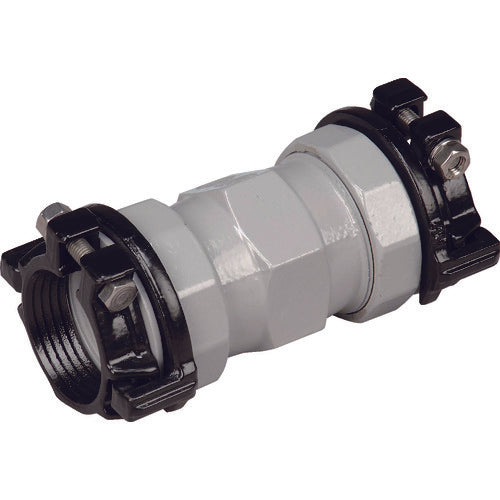

SK Kawanishi Steel Pipe Fitting SKX Socket 32 ​​SKX-S-32 1 pc

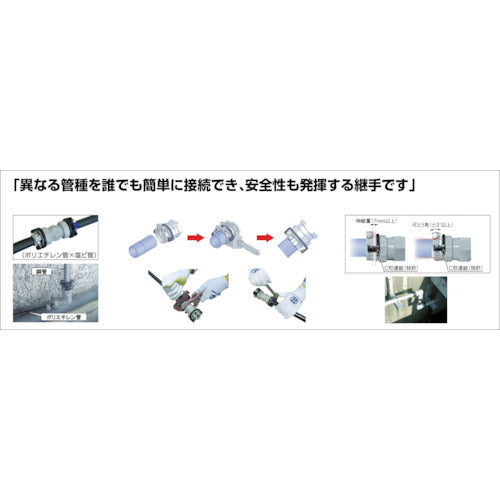

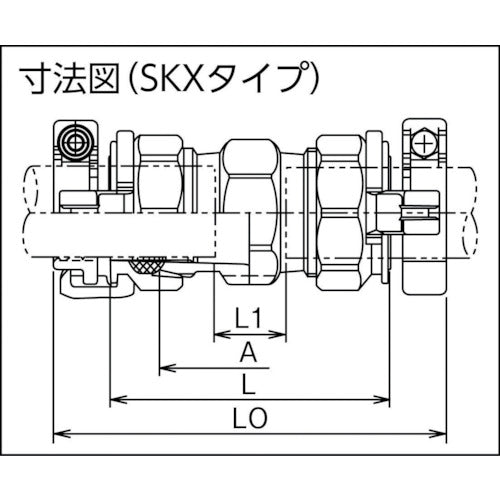

Catalog number: SKX-S-32 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Flexible and expandable, absorbing external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●Easy to remove and reinstall, also suitable for temporary piping. ●No need for thread cutting to connect. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 32 ●L (mm): 111 ●L1 (mm): 35 ●A (mm): 80 ●L0 (mm): 155 ●Maximum L1 (mm): 35 ●Minimum L1 (mm): 10 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0-45 ●Nominal diameter: 32 ●Operating temperature: 0-45℃ ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
