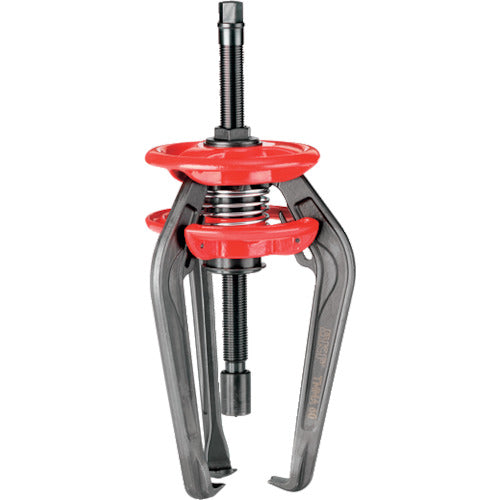

SKF EasyPull Mechanical Puller TMMA 60 TMMA 60 1 piece

Catalogue number: TMMA 60 Features: ● Puller with spring-loaded arms for quick and easy attachment to bearings. ● Most user-friendly and safe bearing removal tool available. ● Extremely robust and ergonomically designed, it features spring-loaded arms that position the puller on the back of the component in just one motion. Applications: ● For safe and easy removal of bearings. Specifications: ● Suitable bearings (mm): 36-150 ● Claw reach (mm): 150 ● Claw tip thickness (mm): 7.5 ● Pull-out suitable bearing outer diameter (mm): 36-150 ● Set contents (pieces): 1 ● Push screw hex size (mm): 17 ● Guaranteed load (kN): 60 ● Claw tip size length x width (mm): 15 x 20 ● Suitable pulleys (mm): ● Unique spring-loaded release mechanism with red ring allows TMMA 60 to be positioned on the back of the part with just one movement ● Self-centering ability and tip prevents damage to the shaft ● Self-locking arms prevent the puller from slipping under load ● Rugged design allows safe removal of parts even in the tightest of applications ● Mechanical ● Puller part hex screw (mm): 27 ● Maximum spindle torque (Nm): 105 ● Nosepiece diameter (mm): 24
