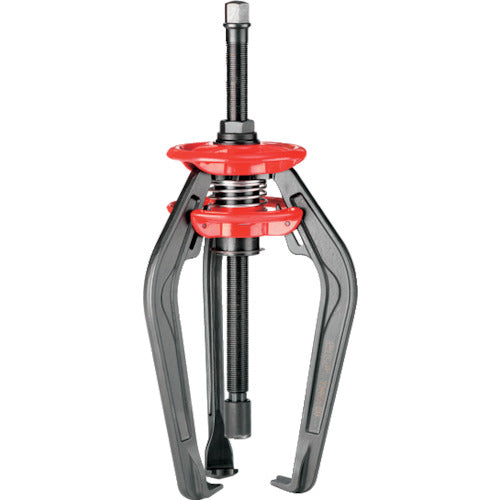

SKF EasyPull Mechanical Puller TMMA 80 TMMA 80 1 piece

Catalogue number: TMMA 80 Features: ● Puller with spring-loaded arms for quick and easy attachment to bearings. ● Most user-friendly and safe bearing removal tool available. ● Extremely robust and ergonomically designed, it features spring-loaded arms that position the puller on the back of the component in just one motion. Applications: ● For safe and easy removal of bearings. Specifications: ● Compatible bearings (mm): 52-200 ● Claw reach length (mm): 200 ● Claw tip thickness (mm): 9.8 ● Pull-out compatible bearing outer diameter (mm): 52-200 ● Set contents (pieces): 1 ● Push screw hex size (mm): 22 ● Guaranteed load (kN): 80 ● Claw tip size length x width (mm): 18 x 28 ● Compatible pulleys (mm): ● Unique spring-loaded release mechanism with red ring allows TMMA 80 to be positioned on the back of the component in just one movement ● Self-centering ability and tip components prevent damage to the shaft ● Self-locking arms prevent the puller from slipping under load ● Robust design allows safe removal of components even in the tightest fit applications ● Optional hydraulic pull-out force generator TMHS 75 can be used. Mechanical type. Puller part hexagonal screw (mm): 30. Maximum spindle torque (Nm): 175. Nosepiece diameter (mm): 26.
