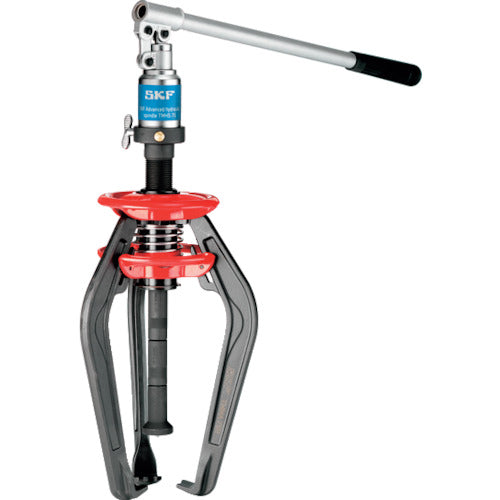

SKF EasyPull hydraulic puller TMMA 75H TMMA 75H 1 piece

Catalogue number: TMMA 75H Features: ● The puller's spring-loaded arms allow for quick and easy attachment to bearings. ● The most user-friendly and safest bearing removal tool available. ● Extremely robust and ergonomically designed, it features spring-loaded arms that position the puller on the back of the component in just one motion. Applications: ● For safe and easy removal of bearings. ● Especially for removing spherical roller bearings, CARB toroidal roller bearings and components such as pulleys and flywheels. Specifications: ● Compatible bearings (mm): 52-200 ● Reach of jaws (mm): 200 ● Jaw tip thickness (mm): 9.8 ● Pull-out compatible bearing outer diameter (mm): 52-200 ● Set contents (pieces): 1 ● Push screw hex size (mm): Handle type ● Guaranteed load (kN): 75 ● Jaw tip size length x width (mm): 18 x 28 ● Compatible pulleys (mm): ● Hydraulic cylinder, pump, and puller integrated for immediate use ● Safety valve prevents overloading of the spindle and puller even if excessive force is applied ● Spring-loaded center point of hydraulic spindle allows easy centering of the puller on the shaft without damaging the shaft ● Unique spring-loaded release mechanism with red ring allows the puller to be positioned on the back of the component in just one movement ● Self-centering ability and tip parts prevent damage to the shaft ● Hydraulic type ● Hydraulic spindle: TMHS 75 ● Piston stroke (mm): 75 ● Nosepiece diameter (mm): 35 Set contents/accessories: Multiple extension parts, 1 tip part
