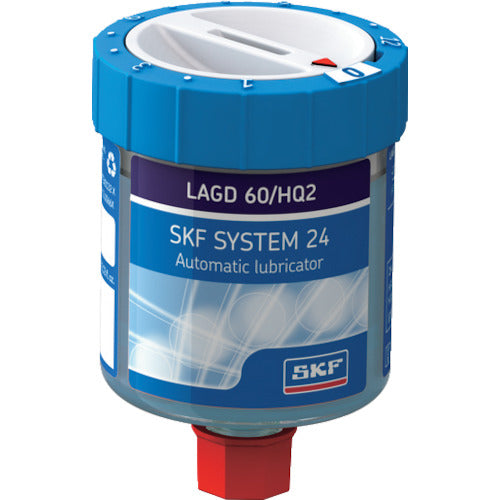

SKF SYSTEM 24 Gas-type automatic lubricator LAGD 60/HQ2 LAGD 60/HQ2 1 unit

Catalog number: LAGD 60/HQ2 Features: ●The LAGD series is a gas-operated single-point automatic lubricator. ●It offers benefits such as improved employee safety, increased machine reliability, and optimized maintenance work. Applications: ● Electric motors, fans, pumps Specifications: ● Grease capacity (cc): 60 ● Height (mm): 81 ● Width (mm): 50 ● Oil discharge period: Set from 1 to 12 months ● Lubrication points: 1 ● Type: Gas type ● Viscosity: 2 ● Lubrication cycle: Continuous operation ● Grease discharge period: Set from 1 to 12 months ● Mounting screw dimensions: R 1/4 ● Maximum pressure (MPa): 0.5 (at start-up) ● Protection class: IP 68 ● Power supply voltage: Built-in battery ● Product name: LGHQ 2. Bearing grease for electric motors ● Maximum supply length (mm): 300 ● Ambient temperature range (℃): -20 to +60 ● Discharge amount adjustment that can be set for a period of 1 to 12 months ● Intrinsic safety certification: ATEX approval for Zone 0 ● Transparent lubricant container allows visual confirmation of the discharge amount ● Small size allows installation in restricted places ● Lubricant type: LGHQ 2. Grease for high temperature and high speed
