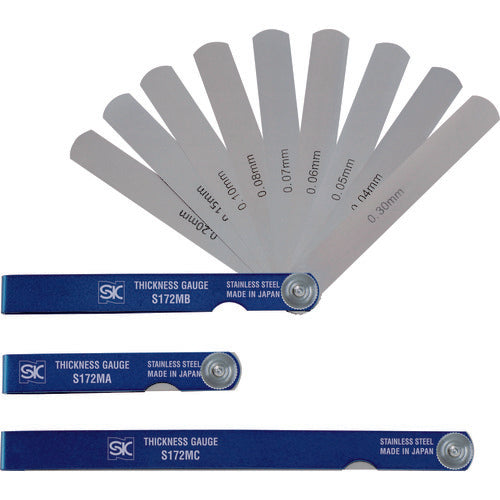

SK Gap Gauge Stainless Steel Thickness Gauge 150mm 9 pieces Thickness 0.04-0.30mm S172MC 1 piece

Catalog number: S172MC Features: ● Uses rust-resistant stainless steel leaf. ● Accurate inspection is possible by inserting into minute gaps between two planes that are difficult to measure with measuring instruments. ● An essential measuring tool for measuring the distance between pistons and cylinders in automobiles and internal combustion engines. Applications: ● For measuring gaps. Specifications: ● Manufacturer code: 110683 ● Leaf shape: A ● Length (mm): 150 ● Number of pieces (pieces): 9 ● Set details (mm): 0.04, 0.05, 0.06, 0.07, 0.08, 0.10, 0.15, 0.20, 0.30 ● Thickness (mm): 0.04, 0.05, 0.06, 0.07, 0.08, 0.10, 0.20, 0.30 ● Maximum Small display (mm): 0.04 ● Measurement range (mm): 0.04-0.30 ● Leaf width (mm): 12.7 ● Leaf length (mm): 150 ● Leaf thickness (mm): 0.04-0.30 ● Precision 0.04-0.10 (mm): ±0.005 ● Precision 0.15-0.30 (mm): ±0.015 ● Key parts with eyelet finish (leaf cannot be replaced) ● Number of sets (pieces): 9 Material/Finish: ● Stainless steel (SUS304H)
