SK Spline Micrometer Tip Diameter 3mm MC200-25SB 1 unit

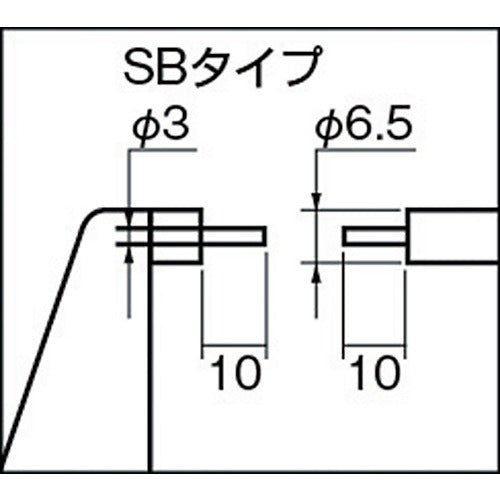

Catalog number: MC200-25SB Features: ●Both measuring surfaces are thin for easy measurement of groove diameter. ●Comes with a heat-resistant cover. ●Frame is painted. ●As the measuring tip is thin, it is ideal for measuring grooves on spline shafts, etc. Applications: ●For measuring the groove diameter of spline shafts. Specifications: ●Manufacturer code: 151462 ●Measuring range (mm): 0-25 ●Maximum allowable error (μm): 4 ●Minimum display (mm): 0.01 ●Measuring surface shape: Spline type (with carbide tip) ●Constant pressure device: Ratchet stop ●Tip diameter (mm): φ3×10 ●Measuring surface dimensions (mm): 3×10
