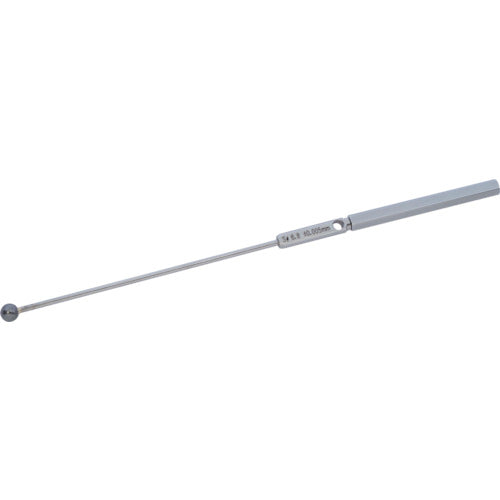

SK Ball Gap Gauge Stainless Grip φ6.8 BTS-068 1 piece

SK Ball Gap Gauge Stainless Grip φ6.8 BTS-068 1 piece

JAN：4975846046481 　
Ball Gap Gauge gauge Measurement and measuring equipment Measuring Tools SK Gauge 03
¥13,517
¥13,517
Sale Sold out
Shipping calculated at checkout.
Catalogue number: BTS-068 Features: ●Easy position confirmation when installing assembly parts. ●Since the stem is a stainless steel spring, it can be bent for measurement. Applications: ●For measuring dimensions inside shallow grooves and curved pipes. ●For measuring gaps in molds. Specifications: ●Nominal size (mm): φ6.8 ●Stem diameter (mm): 2.3 ●Carbide ball (mm): φ6.8 ●Diameter precision: ±5μm ●Sphericity: 5μm ●Standard (mm): φ6.8 Material/Finish: ●Gauge part: Carbide ●Stem/Grip: Stainless steel
