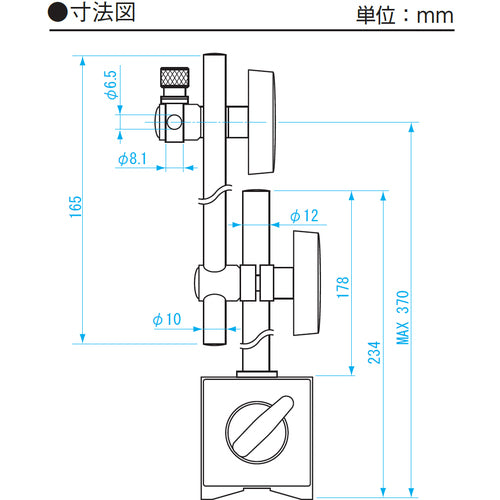

Catalog number: SB-6C Features: ●The magnet can be turned on/off by operating the lever. ●Compatible with dial gauges with lugs. ●For those who require a smaller size, we recommend SB-25M. Specifications: ●Adhesive force (N): 800 ●Magnet width (mm): 50 ●Magnet depth (mm): 60 ●Magnet height (mm): 55 ●Surface magnetic flux density (mT): Maximum 100 ●Base dimensions: 50 x 60 x 55 mm ●Stem mounting: φ6, φ8 mm ●Lug hole mounting: φ6.5, φ8 ●Main pillar mounting screw: M8xP1.25 ●Dovetail groove: Not possible
