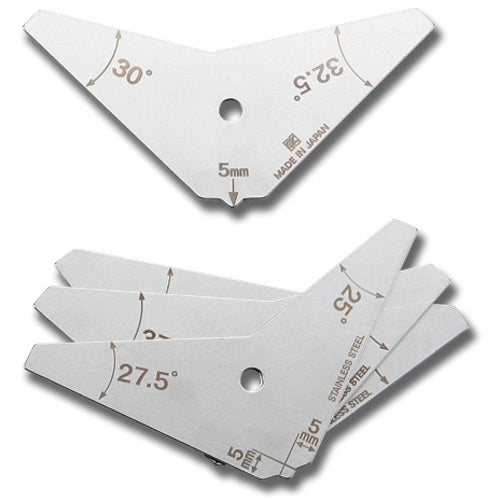

SK Angle Limit Gauge, Set of 4, Measurement Range 25-42.5° (0.25° increments) WAL2542 1 piece

Catalog number: WAL2542 Features: ●Limit gauge for measuring joint groove angles and butt joint groove angles. ●Set of 4 gauge leaves. ●Displays limit dimension values ​​for easy pass/fail judgment. ●Leg length indicates allowable limit dimension at throat thickness measurement. Applications: ●For measuring joint groove angles and butt joint groove angles. ●For measuring T-joint groove angles (inner), butt joint groove angles (inner angle), fillet leg length (height), and throat thickness. Specifications: ●Measurable angle (°): 25 to 42.5 (2.5° pitch) ●Measurable throat thickness (mm): 4, 5, 6, 7 ●Measurable leg length (mm): 5, 7, 8, 10 ●Instrument error: ±0.1mm (length), ±1° (angle) Material/Finish: ●Stainless steel
