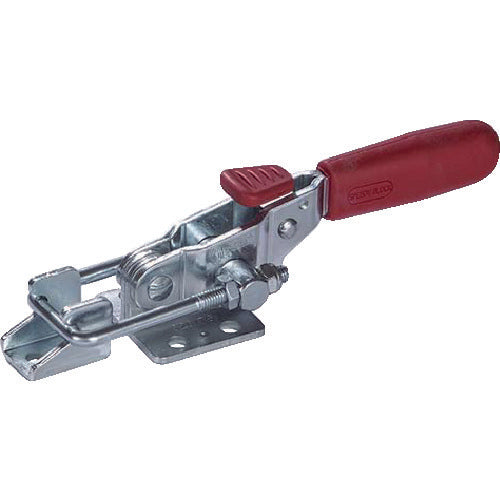

Catalogue number: 160T6 Features: ● Equipped with a safety latch to prevent the clamp from being released due to vibration, etc. ● The mounting surface is parallel to the direction in which force is applied. ● The handle is parallel to the mounting surface. Applications: ● For welding jigs. For fixing workpieces. For machining jigs. Specifications: ● Overall length (mm): 101 ● Pull force (kN): 1.6 ● Stroke (mm): 25 ● Mounting method: Hole diameter: 4.3 ● Special type for holding back Material/Finish: ● Zinc-plated steel Set contents/Accessories: ● Hook plate
