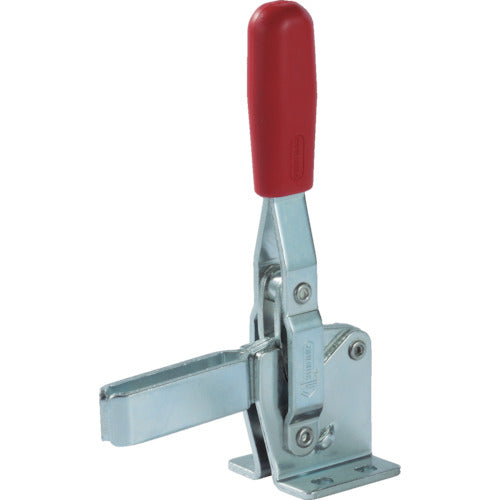

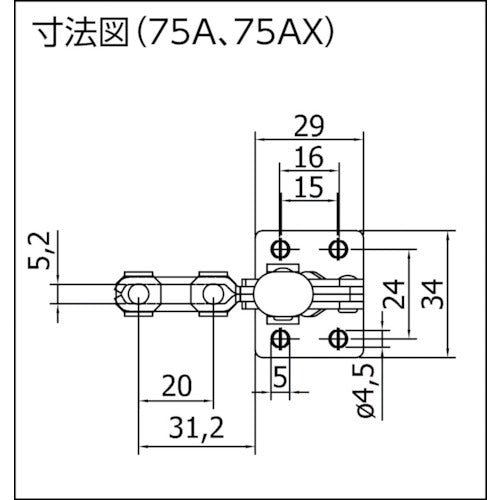

SPEEDY B Speedy Block Vertical 75A 75A 1 piece

Catalog number: 75A Features: ●During clamping operation, the clamp arm is guided vertically, so it is stable against lateral forces. Applications: ●For welding jigs. For fixing workpieces. For processing jigs. Specifications: ●Total length (mm): 98 ●Tightening pressure (kN): 0.75 ●Arm angle (°): 90 ●Installation method: Hole diameter: 4.5 ●Compatible contact bolt diameter: M5 ●Downward pressing type ●Vertical handle ●Flange base ●Hollow clamp arm type Material/Finish: ●Zinc-plated steel Set contents/Accessories: ●Flange washers x 2 Note: ●Contact bolts are sold separately.
