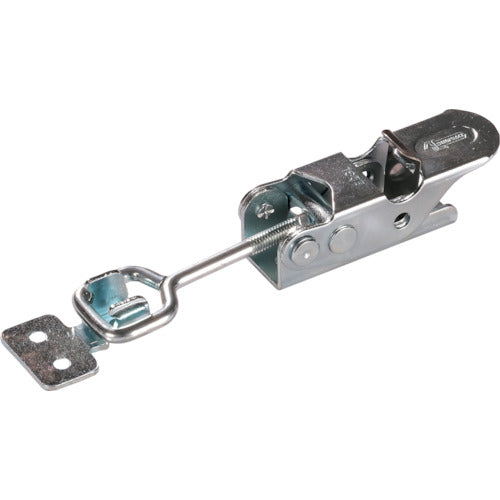

SPEEDY B Toggle clamp E-latch Toggle clamp G type with safety lock (dedicated type for holding) E3GL 1 pc

Catalogue number: E3GL Features: ● Equipped with a safety latch to prevent the clamp from being released due to vibration, etc. ● The rod length can be adjusted and fixed. ● Equipped with a padlock mounting hole so it can be locked. Applications: ● For welding jigs. ● For fixing workpieces. ● For processing jigs. Specifications: ● Total length (mm): 189.5 ● Pull pressure (kN): 3 ● Adjustment amount (mm): 33-45.5 ● Stroke (mm): 33-45.5 ● Bolt adjustment amount (mm): 33-45.5 ● Hook part: round ● Product stamp: AE3110 ● Mounting hole diameter: 6.5 ● Special type for retaining Material/Finish: ● Steel
