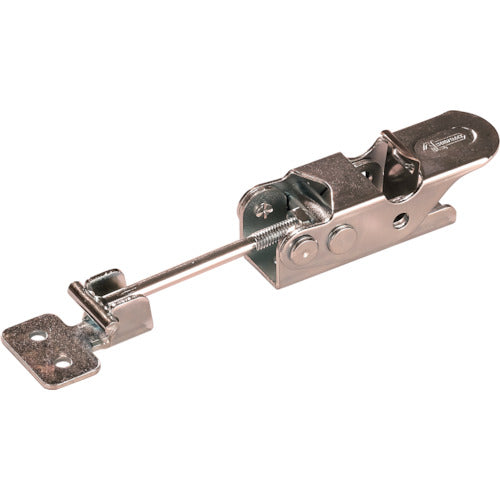

SPEEDY B Toggle clamp E-latch Toggle clamp T-type with safety lock (dedicated type for holding) E3TLX 1 pc

Catalogue number: E3TLX Features: ● Equipped with a safety latch to prevent the clamp from being released due to vibration, etc. ● The rod length can be adjusted and fixed. ● Padlock mounting hole is provided so it can be locked. Applications: ● For welding jigs. ● For fixing workpieces. ● For machining jigs. Specifications: ● Total length (mm): 189.5 ● Pull pressure (kN): 3 ● Adjustment amount (mm): 33-45.5 ● Stroke (mm): 33-45.5 ● Bolt adjustment amount (mm): 33-45.5 ● Hook part: T-type ● Product marking: ES3120 ● Mounting hole diameter: 6.5 ● Dedicated type for retaining Material/Finish: ● Stainless steel (SUS304)
