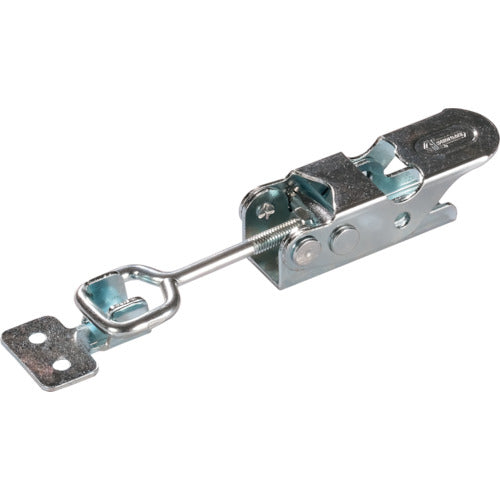

SPEEDY B E-latch toggle clamp G type (retaining type only) E2G 1 pc

Catalogue number: E2G Features: ● The rod length can be adjusted and fixed. ● Padlock mounting hole is provided so it can be locked. Applications: ● For welding jigs. ● For fixing workpieces. ● For processing jigs. Specifications: ● Overall length (mm): 155.5 ● Pulling pressure (kN): 2 ● Adjustment amount (mm): 28-39 ● Stroke (mm): 28-39 ● Bolt adjustment amount (mm): 28-39 ● Hook part: round type ● Product stamp: AE2010 ● Mounting hole diameter: 5.2 ● Special type for retaining Material/Finish: ● Steel
