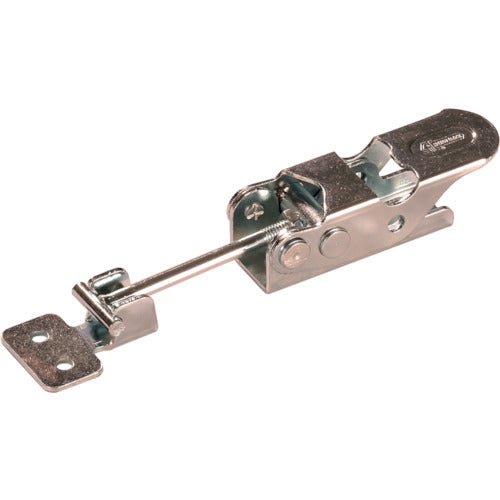

SPEEDY B E-Latch Toggle Clamp T-Type (For Retaining Only) E3TX 1 pc

Catalogue number: E3TX Features: ● The length of the rod can be adjusted and fixed. ● Padlock mounting hole is provided so it can be locked. Applications: ● For welding jigs. ● For fixing workpieces. ● For machining jigs. Specifications: ● Total length (mm): 189.5 ● Pull pressure (kN): 3 ● Adjustment amount (mm): 33-45.5 ● Stroke (mm): 33-45.5 ● Bolt adjustment amount (mm): 33-45.5 ● Hook part: T-type ● Product marking: ES3020 ● Mounting hole diameter: 6.5 ● Special type for retaining Material/Finish: ● Stainless steel (SUS304)
